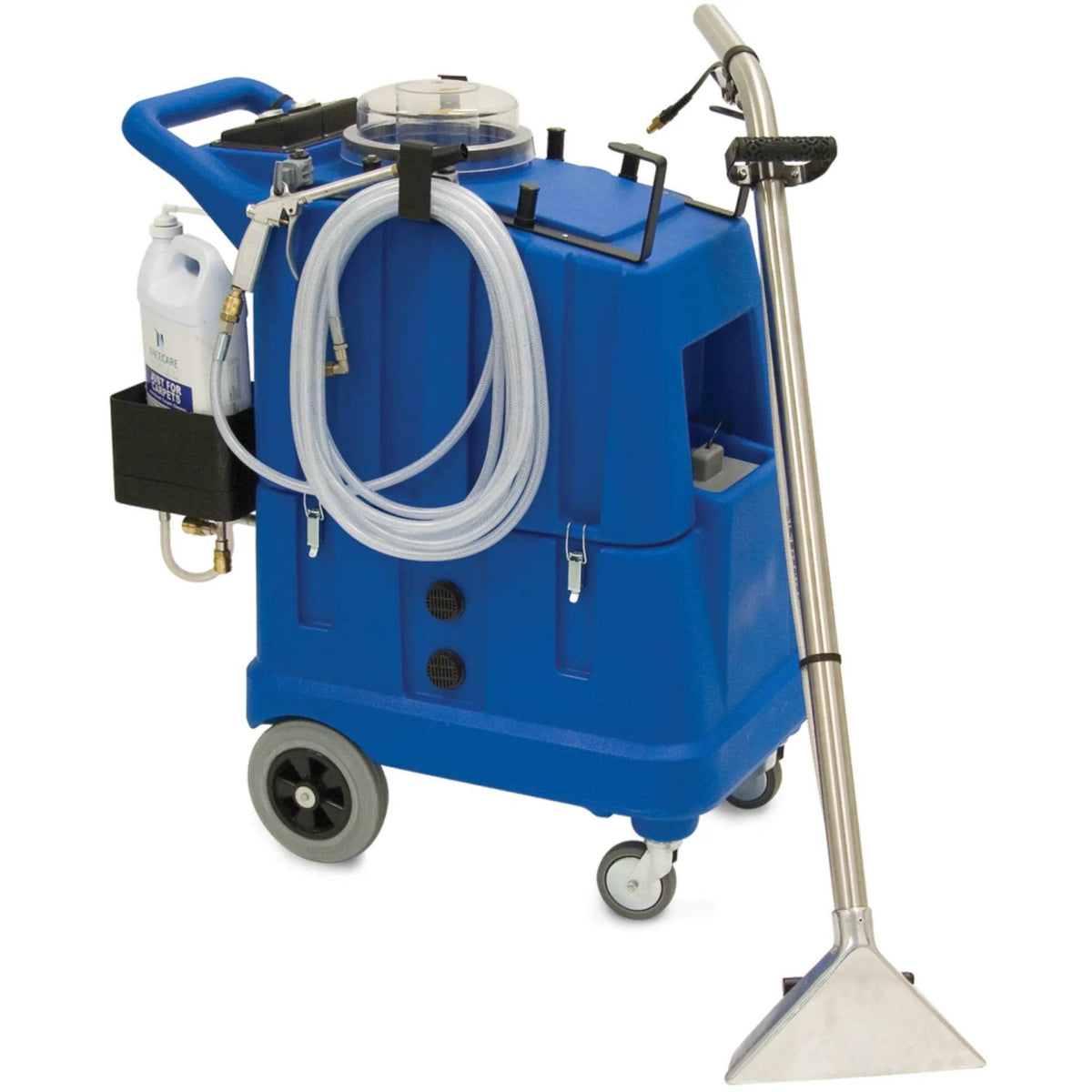

NaceCare TP 18SX Box Carpet Extractor – 1400W, 135" WL, 18-Gal, 20' Hose

NaceCare TP 18SX Box Carpet Extractor – 1400W, 135" WL, 18-Gal, 20' Hose

SKU: K-8025156In stock
$2,999.00
Free shipping on this item
Request a quote / purchase order

Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.

Email a quote request Call (978) 295-7538
Call a specialist — (978) 295-7538

Pricing, freight and lead time. Mon–Fri 9 AM–8 PM ET.

Estimated delivery: 4–10 business days
Ships new from the Nacecare warehouse, with the manufacturer's warranty
Authorized Nacecare dealerGenuine Nacecare equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Expert phone supportTalk to a product specialist Mon–Fri, 9 AM–8 PM ET: (978) 295-7538
Ordering 3+ units? Call for volume pricing – +1 (978) 295-7538
Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay USDC Visa

Need help choosing? Talk to an expert

+1 (978) 295-7538

NaceCare TP 18SX: High-Capacity Box Extractor for Large Commercial Jobs

The TP 18SX is the largest portable box extractor in the NaceCare range — 18-gallon detachable tanks, 135" of water lift from a 1400W 2-stage motor, and a 130 PSI bypass pump delivering 1.2 GPM through the included 20' hose set and 3-jet stainless steel wand. The two-piece roto-molded polyethylene body separates at the tank joint for transport, and 70 dB(A) operation keeps it usable in occupied large venues like convention centers, hotels, and institutional facilities.

Max Capacity Extraction for Long-Run Jobs

  • 1400W 2-stage motor — produces 135" water lift and 95 CFM for thorough carpet moisture recovery
  • 130 PSI bypass pump — maintains 1.2 GPM flow through the 20' hose without pressure drop at the wand tip
  • 18-gallon tank system — significantly reduces the number of trips to refill or empty during large-area cleaning
  • 3-jet stainless steel wand — distributes solution evenly for consistent extraction across wide cleaning strokes
  • Optional HT1800 heater — adds hot water extraction capability for heavily soiled traffic lanes

Convention Centers, Hotels, and Large Institutional Spaces

The TP 18SX is the portable extractor of choice for operations where refill trips interrupt productivity: convention center ballrooms being reset between events, hotel corridors being deep-cleaned overnight, and university dormitory common areas being turned over during breaks. The 18-gallon capacity cuts interruptions by roughly half compared to 8-gallon units on the same job. At 92 lbs, it requires a cart or team lift, but the 20' wand reach means the machine itself rarely moves once staged at a room entrance. The 70 dB(A) rating is appropriate for use in occupied facilities.

Specifications

Vacuum Motor 1400W (2-stage)
Airflow 95 CFM
Water Lift 135"
Pump Pressure 130 PSI (bypass)
Flow Rate 1.20 GPM
Tank Capacity 18 US gal
Hose Length 20'
Working Capacity 800 sq.ft./hr
Noise Level 70 dB(A)
Power Cord 33'
Weight 92 lbs

Documents

Spec Sheet · Owner Manual

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

  1. Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
  2. We verify your certificate and mark your account tax-exempt — usually within one business day.
  3. Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Product Image
Added to cart
NaceCare TP 18SX Box Carpet Extractor – 1400W, 135" WL, 18-Gal, 20' HoseNaceCare TP 18SX Box Carpet Extractor – 1400W, 135" WL, 1...
View Cart

Frequently Asked Questions

What tank capacity does the TP 18SX have?
The TP 18SX uses 18-gallon solution and recovery tanks in a two-piece detachable design, cutting refill and empty stops roughly in half compared to 8-gallon box extractors on the same job.
What pump pressure and flow rate does the TP 18SX deliver?
The TP 18SX uses a 130 PSI bypass pump that delivers 1.2 GPM through the 20' solution hose and 3-jet stainless wand.
How does the TP 18SX compare to the smaller TP 8X?
Both use similar hose-and-wand configurations, but the TP 18SX has 18-gallon tanks versus 8 gallons and weighs 92 lbs versus 49 lbs. The TP 18SX suits long-run institutional jobs; the TP 8X suits van-based portable operations.
Can the TP 18SX be upgraded with hot water extraction?
Yes. An optional HT1800 inline heater is available for the TP 18SX, adding hot water extraction capability for heavily soiled carpets and traffic areas.
What motor powers the TP 18SX?
The TP 18SX uses a 1400W 2-stage vacuum motor producing 95 CFM of airflow and 135" of water lift for consistent moisture recovery.
What is the noise level of the TP 18SX?
The TP 18SX operates at 70 dB(A), suitable for use in occupied commercial venues such as hotels, convention centers, and institutional facilities.

Parts & Accessories That Fit the NaceCare TP 18SX Box Carpet Extractor

Confirmed-fit wear parts and accessories for this machine. Not sure which you need? Call 9782957538.

How the NaceCare TP 18SX Box Carpet Extractor Compares to Other Nacecare carpet extractors

Every Nacecare carpet extractor we carry, side by side. Not sure which size fits the job? Call +1 (978) 295-7538.

Model
This modelNaceCare TP 18SX Box Carpet Extractor NaceCare TP 18SX Box Carpet Extractor
NaceCare TP 8X Box Carpet Extractor NaceCare TP 8X Box Carpet Extractor
Price$2,999$2,279
Water lift135 in120 in
LinkYou're hereView
