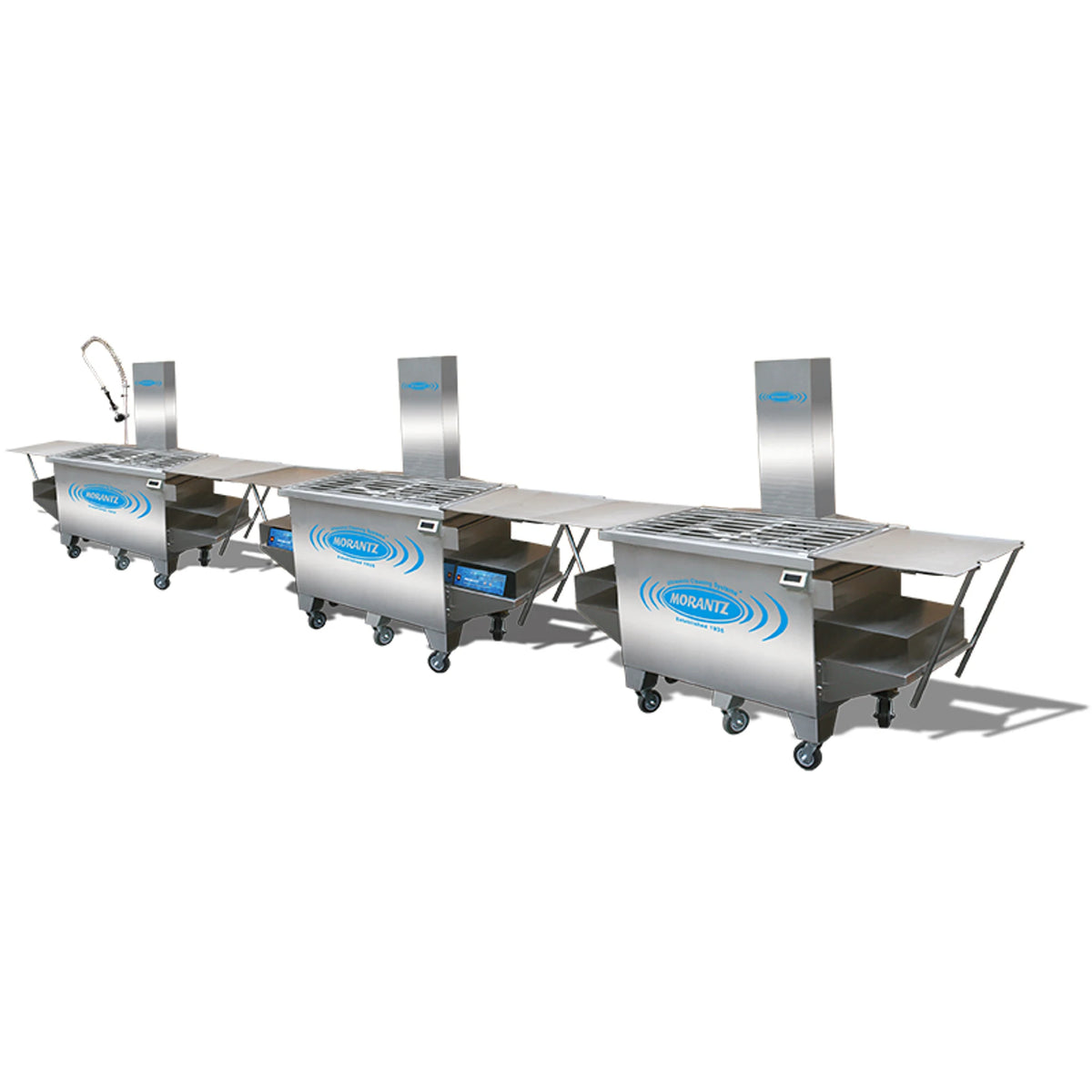

Morantz SM-200-SS Super System 3-Station Ultrasonic Cleaning Line – 200 Gal
$92,858.00
Free shipping on this item
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Built to order — ships in 8 weeks after purchase
Authorized Morantz Ultrasonics dealerGenuine Morantz Ultrasonics equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert
+1 (978) 295-7538SM-200-SS Super System Ultrasonic Cleaning Line — 3-Stage Processing
The Morantz SM-200-SS Super System moves large loads through separate pre-wash, ultrasonic wash, and rinse stations, with 200 gallons of capacity in each tank. It is designed for restoration contractors, facility managers, blind cleaning services, and parts-cleaning shops that need a defined cleaning sequence for bulky or high-volume loads. This unit is built to order and ships in approximately 8 weeks.
SM-200-SS Capacity, Lift Handling, and Ultrasonic Output
Three 55-inch-long interior tanks and a side-by-side line length of 27 feet 6 inches make floor space and utility planning central to the buying decision. Two Prowave generators provide adjustable intensity and pulse controls for matching ultrasonic action to the load.
- Three 200-gallon stations — separate pre-wash, ultrasonic wash, and rinse stages support an organized production flow.
- 4,000 watts and 8,000 peak watts — two generators drive four immersible transducer packs across the ultrasonic station.
- Three electric lifts — foot-pedal operation raises and lowers loads weighing up to 250 pounds or containing up to 12 baskets.
- Two 3,000-watt heating systems — thermostatic controls and digital readouts help operators manage solution temperature.
- Pump, filtration, and bubbler equipment — pre-wash and rinse filtration supports solution management, while the bubbler adds agitation when connected to a separately supplied compressor.
- Non-magnetic stainless steel tanks — each tank rides on five casters for positioning within the cleaning area.
- Six lids and six shelves — the lids double as work surfaces, creating space for staging between process steps.
SM-200-SS Applications and Environments
The SM-200-SS fits restoration facilities processing soot- or residue-affected contents that require staged cleaning rather than a single wash tank. Blind cleaning businesses can use its long, deep tanks and lift-assisted handling for batches that would otherwise require repeated manual movement. Industrial parts-cleaning shops can separate initial soil removal from ultrasonic processing and final rinsing. Facility maintenance departments with adequate floor space and four 220/240-volt plus four 120-volt circuits can integrate the line into a dedicated cleaning room; a stainless commercial sprayer, manual, and unlimited training are included.
Specifications
| Model | SM-200-SS Super System |
| Stations | 3 – Pre-Wash, Ultrasonic Wash, Rinse |
| Capacity (per tank) | 200 gallons (757 liters) |
| Interior Dimensions (each tank) | 55" L x 29" W x 29" D |
| Exterior Dimensions (each tank) | 110" L (lids open) x 35.5" W x 72" H (top of lift) |
| Line Length (side by side) | 27 ft 6 in (8.4 m) |
| Ultrasonic Generators | 2x Prowave with intensity and pulse controls, 4,000 W / 8,000 peak W |
| Transducers | 4 immersible transducer packs, 14-gauge stainless steel |
| Electric Lifts | 3, with wheels and foot pedal controls, up to 250 lbs / 12 baskets |
| Heating | 2 thermostatically controlled systems, 3,000 W each, digital readouts |
| Power Requirements | 4x 220/240V circuits + 4x 120V circuits |
| Tank Construction | Heavy-duty non-magnetic stainless steel, 5 casters per tank |
| Also Included | Pump and filter system (pre-wash and rinse), pre-wash bubbler (compressor not included), stainless commercial sprayer, 6 lids/work tables, 6 shelves, manual, free unlimited training |
| Lead Time | Made to order – approximately 8 weeks |
