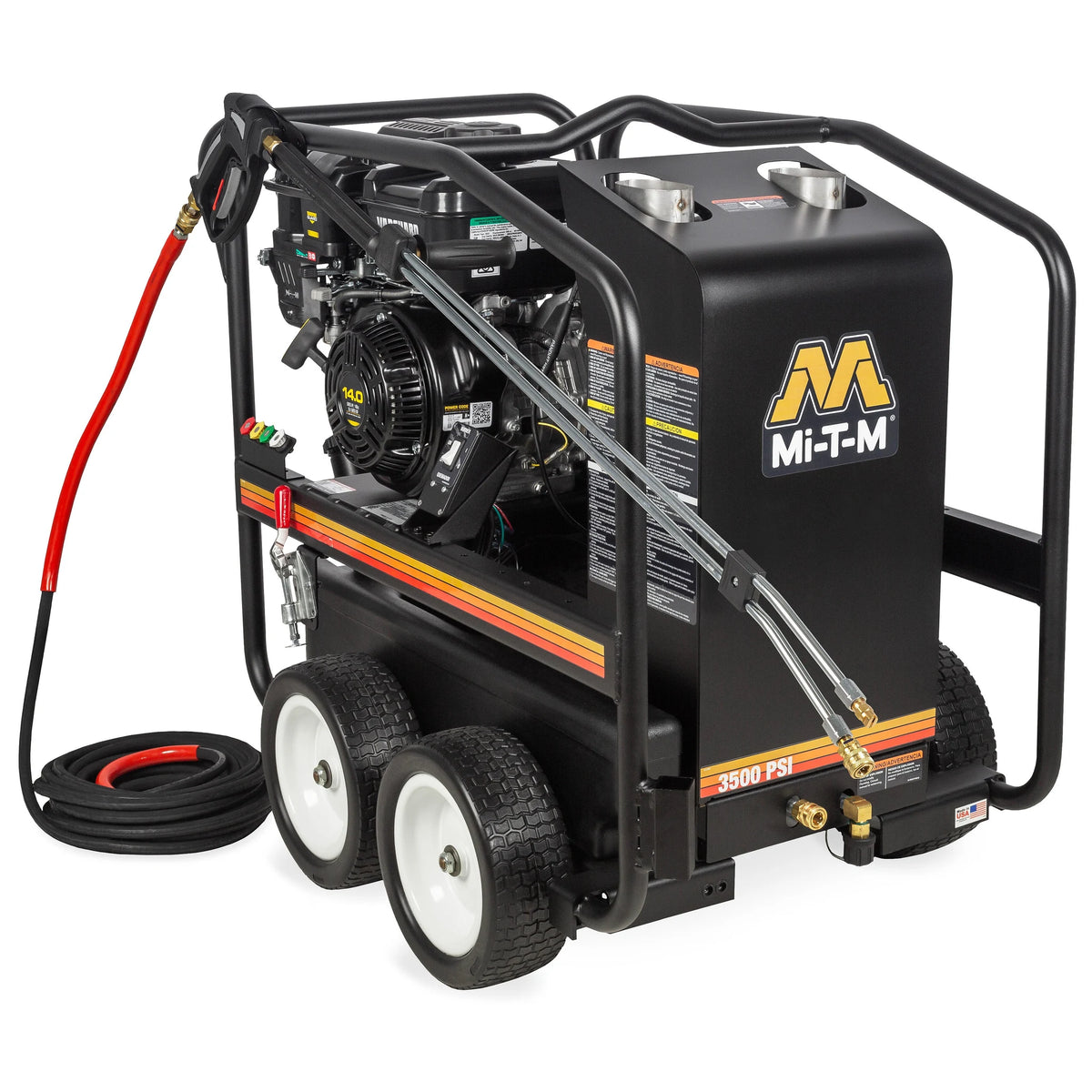

Mi-T-M HSP-3504-3MGV Hot Water Pressure Washer – 3500 PSI, 3.3 GPM, Vanguard
$6,435.00
Free shipping on this item
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Estimated delivery: 2–7 business days
Authorized Mi-T-M dealerGenuine Mi-T-M equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert
+1 (978) 295-7538HSP-3504-3MGV Hot Water Pressure Washer for Grease, Oil, and Heavy-Soil Wash Routes
This pressure washer easily eliminates grease and oils from equipment, garage floors and workshops and is equipped with an Electro Magnetic Firing (EMF) system. Facility managers and contractors specify the HSP-3504-3MGV when uptime and serviceability matter more than entry-price tags.
HSP-3504-3MGV Pump, Frame, and Out-of-Box Kit
The HSP-3504-3MGV ships with the pump, chassis, and wand-line components specified for commercial use rather than weekend duty.
- Pump build — External bypass system protects from heat build-up · Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector.
- Chassis — Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires.
- Components — Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
- Miscellaneous — Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
- Out-of-box kit — Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory. 49 state engine. Not for sale in California.. Crew is operational without a separate accessories order.
- Warranty — 3 Year Coil · 3 Year Vanguard Engine · 7 Year AR Pump.
HSP-3504-3MGV Applications and Environments
The HSP-3504-3MGV fits commercial cleaning routes where grease, oil, and protein soils survive cold-water rinse: restaurant exhaust hood and grease-pit service, fleet washing of trucks and heavy equipment, food-processing sanitation, oil-field equipment maintenance, animal housing washdown, and graffiti removal under municipal contracts. Restoration contractors stack it for high-volume disaster cleanup.
HSP-3504-3MGV Pump, Engine, and CARB Notes
AR feeds the high-pressure circuit; preset unloader keeps the pump from over-heating during trigger-off cycles.
Specifications
| PSI | 3500 |
| GPM | 3.3 |
| Displacement/ Engine | 408cc Vanguard OHV |
| Pump | AR |
| Engine Fuel Tank Capacity | 1.51 gallon |
| Burner Fuel Tank Capacity | 5.5 gallon |
| Burner Fuel Cons. | 2.14 gph |
| BTU Per Hour | 294,000 |
| Net Weight | 428.00 lbs. |
| Shipping Weight | 551.00 lbs. |
| Length | 43.00 in. |
| Width | 30.00 in. |
| Height | 41.00 in. |
| Factory Options | HX-0274 Rain Cap; HX-0279 Hour Meter; HX-0280 Adjustable Thermostat; HX-0281 Hour Meter / Adjustable Thermostat; HX-0300 Skid Feet; HX-0303 Electric Start - Sealed Battery Included (must be ordered with unit and cannot be added later) |
