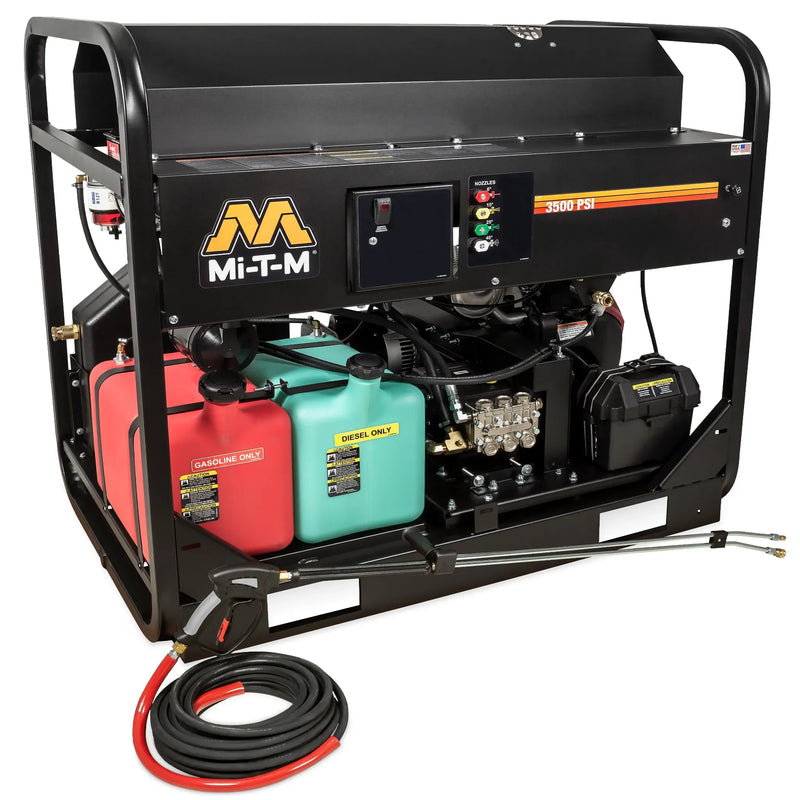

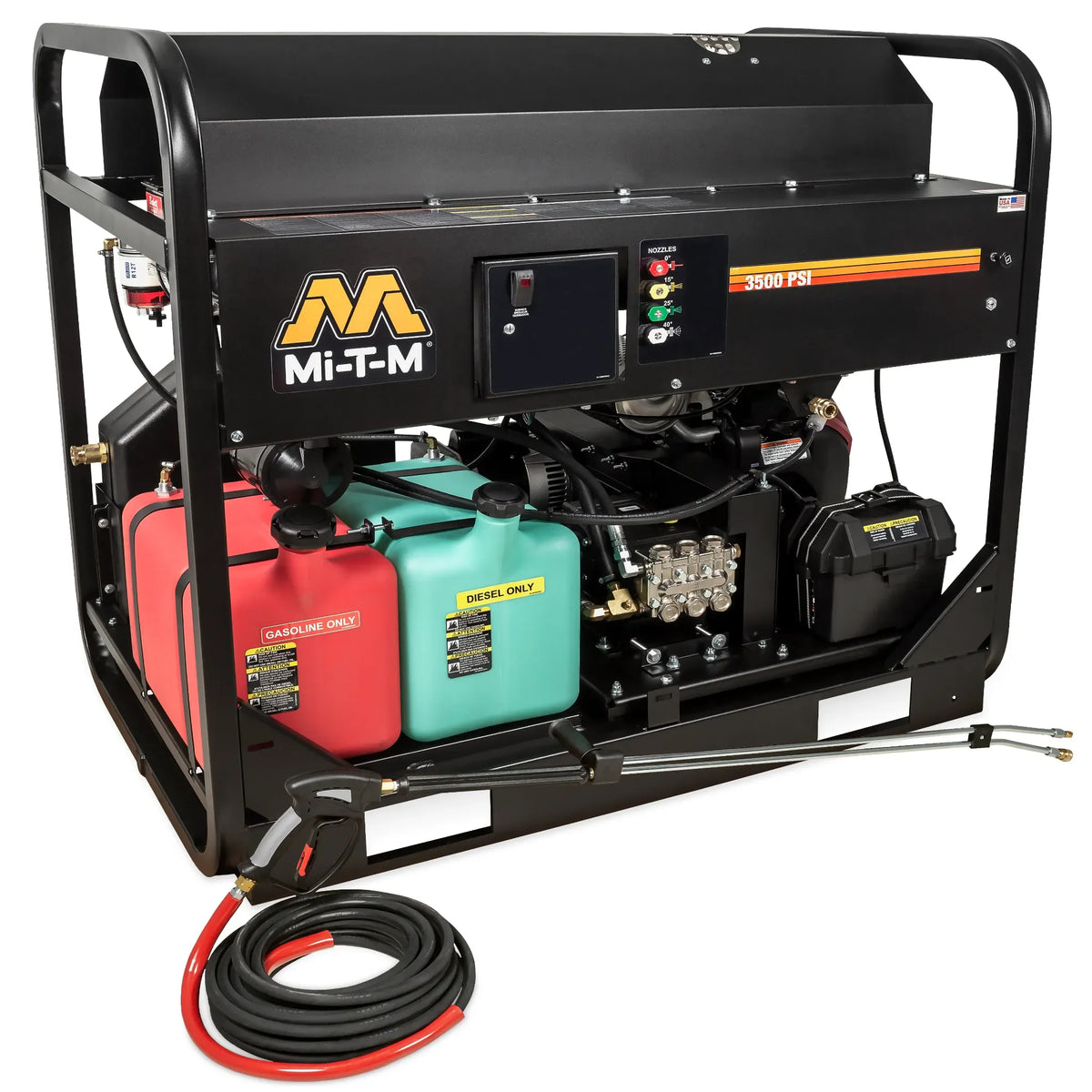

Mi-T-M HS-3505-1MGM Hot Water Pressure Washer – 3500 PSI, Mi-T-M OHV

The Mi-T-M HS-3505-1MGM delivers 3500 PSI at 4.7 GPM with a 670cc Mi-T-M OHV gasoline engine and a General pump. The 471,800 BTU/hr burner provides a 150°F temperature rise to 200°F max outlet. Includes 2900W generator, electric start with sealed battery, dual cogged belt drive, and ½-inch Schedule 80 coil. Weighs 750 lbs at 50" × 34" × 46". Mi-T-M OHV engine alternative for the HS-3505 series.

Engine and Specifications

Pressure: 3500 PSI at 4.7 GPM — balanced pressure and flow for fleet washing, industrial degreasing, and equipment cleaning.
Engine: 670cc Mi-T-M OHV — manufacturer's own engine; electric start with sealed battery; 10.0-gallon engine fuel tank.
Heat: 471,800 BTU/hr, 200°F max — 150°F rise; 10.0-gallon burner tank at 3.37 gph.
Pump: General — external bypass, preset unloader, forged brass manifold, 80-mesh stainless-steel inlet strainer.
Generator: 2900W — onboard power for remote sites.
Weight: 750 lbs — trailer mounting standard.

Specifications

Model	HS-3505-1MGM
Pressure	3500 PSI
Flow Rate	4.7 GPM
Engine	670cc Mi-T-M OHV
Pump	General
BTU/hr	471,800
Max Outlet Temperature	200°F (150°F rise)
Generator	2900W
Engine Fuel Tank	10.0 gal
Burner Tank	10.0 gal
Fuel Consumption	3.37 gph
Weight	750 lbs
Dimensions (L × W × H)	50" × 34" × 46"
Shipping Weight	854.00 lbs.
Warranty	3 Year Coil, 3 Year Mi-T-M Engine, 7 Year General Pump
Factory Options	HX-0130 Three-way Ball Valve; HX-0131 High Pressure Detergent Injector, K7; HX-0133 Steam Combination 250°F, K7; HX-0139 Steam Combination 250°F; HX-0145 Adjustable Thermostat; HX-0147 Four Point Lifting Capability; HX-0148 Adjustable Detergent Valve; HX-0200 Trapping Unloader (must be ordered with unit and cannot be added later)

What's in the Box

Quick connect nozzles – 0°, 15°, 25° and 40°
50-foot x 3/8-inch steel wire-braided hose
Adjustable pressure insulated dual lance with trigger gun

Documents

Spec Sheet

Manual

Pressure	3500 PSI
Flow Rate	4.7 GPM
Water Temp	Hot

Product Warranty Information

Coil	3 years
Kohler Engine	3 years
AR Pump	7 years

Warranty claims go through the manufacturer. Questions about coverage? Call +1 (978) 295-7538 or email info@uscleaningtools.com.

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Mi-T-M HS-3505-1MGM Hot Water Pressure Washer – 3500 PSI,...

View Cart

$8,610.00

Frequently Asked Questions

What engine is in the Mi-T-M HS-3505-1MGM?

The HS-3505-1MGM uses a 670cc Mi-T-M OHV gasoline engine — Mi-T-M's own-brand engine — with electric start and sealed battery. Engine fuel tank holds 10.0 gallons.

What is the pressure and flow of the HS-3505-1MGM?

The HS-3505-1MGM delivers 3500 PSI at 4.7 GPM — appropriate for fleet washing, industrial surface degreasing, and mobile heavy equipment cleaning.

What is the heating output of the HS-3505-1MGM?

The burner delivers 471,800 BTU/hr with a 150°F temperature rise above ambient, reaching 200°F max outlet at 3.37 gph from the 10-gallon burner tank.

Does the HS-3505-1MGM have a generator?

Yes. A 2900-watt generator is included for powering accessories and electrical components at remote job sites.

Is the Mi-T-M OHV engine serviceable in the field?

Mi-T-M supports their own OHV engine through their service network and authorized dealers. Contact Mi-T-M or a local dealer to confirm parts availability in your service area.
