Mi-T-M CW-3004-5ME1 Belt Drive Pressure Washer – 3000 PSI, 3.9 GPM, 230V

Mi-T-M CW-3004-5ME1 Belt Drive Pressure Washer – 3000 PSI, 3.9 GPM, 230V

Brand: Mi-T-M SKU: CW-3004-5ME1 In Stock – Ready to Ship
$6,067.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Authorized Retailer Factory-authorized dealer with genuine products
Manufacturer's Warranty Full manufacturer warranty included
30-Day Returns Hassle-free returns within 30 days
Lowest Price Guaranteed We match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

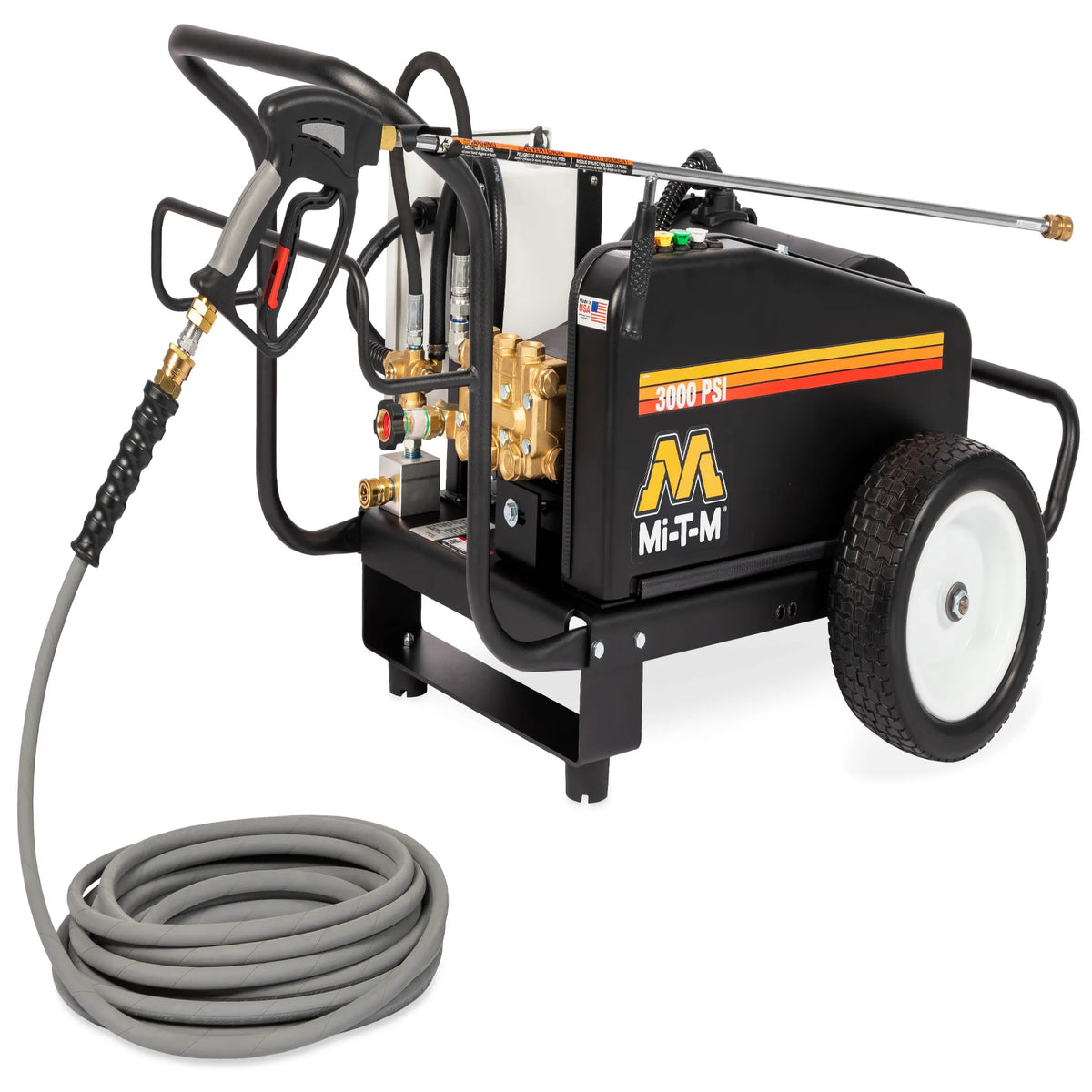

Mi-T-M CW-3004-5ME1 Electric Belt Drive Pressure Washer – 3000 PSI, 3.9 GPM

The Mi-T-M CW-3004-5ME1 combines 3000 PSI of pressure with belt drive durability, running an 8 HP, 230V single-phase motor through a totally enclosed belt system to a General triplex pump. At 3.9 GPM the machine delivers 11,700 cleaning units — the same output as the JP direct drive series but with lower pump RPM, longer pump life, and a fully enclosed drive system on a 322 lb commercial frame.

General Pump and Pressure Protection

  • Pump brand: General triplex pump
  • Manifold: Forged brass for sustained 3000 PSI operation
  • Unloader: Factory preset Mi-T-M unloader for consistent starting pressure
  • External bypass: Routes bypassed water away from pump head, preventing heat accumulation
  • Thermal relief valve: Automatic thermal protection during extended bypass
  • Water filter: Clear-sleeve inline filter — inspect without tools

High-Pressure Belt Drive for Commercial Operations

At 3000 PSI, the CW-3004-5ME1 handles concrete cleaning, degreasing, and heavy equipment wash-down where the extra pressure matters over the 2400 PSI CW-2405 variant. The belt drive system runs the General pump at roughly 60-70% of motor RPM, which is the key reason belt drive machines are specified for facilities running continuous shift operations. The totally enclosed belt guard protects against spray ingress and contact with drive components. The frame is powder-coated steel on 13-inch flat-free tires and fits through standard shop door openings at 46 × 32.5 inches footprint.

Cleaning Units and What Ships

3000 PSI × 3.9 GPM = 11,700 cleaning units. The CW-3004-5ME1 ships with a 50-ft × 3/8-inch non-marking hose, 36-inch insulated trigger gun with lance, and quick-connect nozzles in 0°, 15°, 25°, and 40° angles. The motor power cord is 10 ft — shorter than the JP Series 35 ft cord — so the machine is typically positioned near a panel rather than used as a portable unit. Choose between this 3000 PSI CW model and the 2400 PSI CW-2405-5ME1 based on whether you need higher pressure (CW-3004) or higher GPM (CW-2405 at 4.6 GPM).

Specification Value
PSI 3000
GPM 3.9
Cleaning Units (PSI × GPM) 11,700
Motor 8.0 HP, 230V, 1Ø, 34.6A
Plug Type NEMA 6-50P
Pump General Triplex (belt drive)
Power Cord Length 10 ft
Hose 50 ft × 3/8 in, non-marking
Net Weight 322 lbs
Dimensions (L × W × H) 46 × 32.5 × 30 in

Documents

Spec Sheet
Manual

Product Warranty Information

"1 Year Electric Motor 1 Year Unloader, 7 Year Pump"
Product Image
Added to cart
Mi-T-M CW-3004-5ME1 Belt Drive Pressure Washer – 3000 PSI, 3.9 GPM, 230V Mi-T-M CW-3004-5ME1 Belt Drive Pressure Washer – 3000 PSI...
View Cart

Frequently Asked Questions

How does the CW-3004-5ME1 differ from the CW-2405-5ME1?
The CW-3004-5ME1 runs at 3000 PSI and 3.9 GPM (11,700 CU), while the CW-2405-5ME1 operates at 2400 PSI and 4.6 GPM (11,040 CU). Choose the CW-3004 when higher pressure is required for concrete and heavy degreasing; choose the CW-2405 when higher flow rate and faster rinsing are the priority.
What electrical circuit does the CW-3004-5ME1 require?
The machine draws 34.6A on 230V single-phase with a NEMA 6-50P plug. A dedicated 40-50A circuit is required. The motor cord is 10 ft, so the machine should be positioned close to the panel or outlet.
What is the advantage of belt drive on a 3000 PSI machine?
Belt drive runs the General triplex pump at a lower RPM than the motor, reducing heat and mechanical wear. On a machine used continuously during work shifts, belt drive extends pump seal and valve life significantly compared to direct drive at the same output.
Does the CW-3004-5ME1 include a 0° nozzle?
Yes. The CW Series ships with 0°, 15°, 25°, and 40° quick-connect nozzles along with a 50-ft non-marking hose and 36-inch trigger gun. The 0° pinpoint nozzle is useful for removing embedded deposits on concrete.
What does the totally enclosed belt guard protect against?
The enclosed belt guard prevents spray water and debris from contacting the drive belt and pulleys, and eliminates the hazard of contact with rotating components during operation. It is required in commercial and industrial environments under most facility safety programs.
How does the factory preset unloader differ from an adjustable unloader?
The CW-3004-5ME1 uses a factory preset Mi-T-M unloader set at rated pressure (3000 PSI). This eliminates the need for field adjustment and ensures consistent output. Field-adjustable unloaders on other models allow operators to reduce pressure for delicate surfaces.
