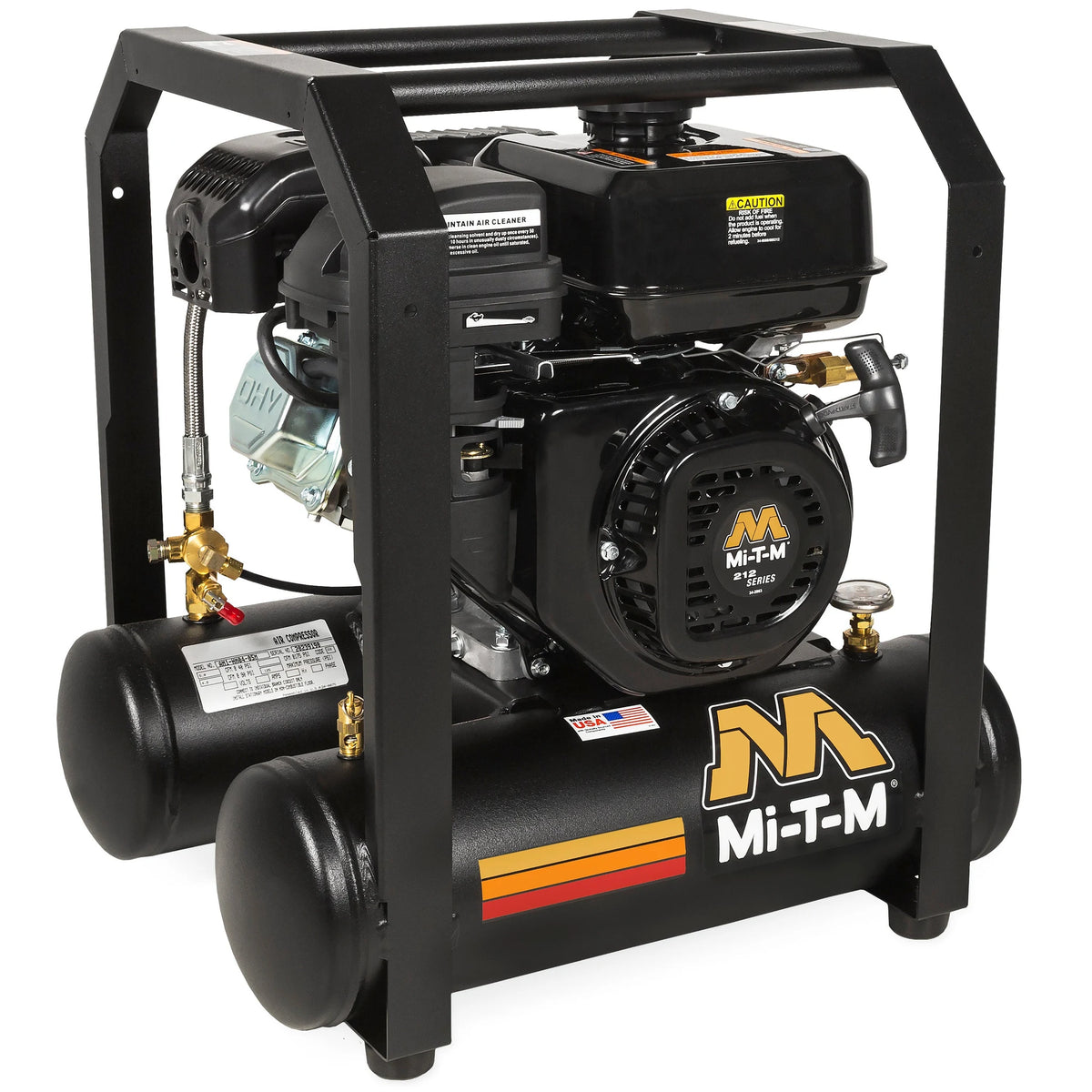

Mi-T-M AM1-HM04-05M Air Compressor – 5-Gal, 4.8 CFM, OHV engine

Name: Mi-T-M AM1-HM04-05M Air Compressor – 5-Gal, 4.8 CFM, OHV engine
Brand: Mi-T-M
SKU: AM1-HM04-05M
Price: 1061.0 USD
Availability: InStock

Authorized dealerSKU: AM1-HM04-05MIn stock

$1,061.00

Choose an optionQuantity

Request a quote / purchase order

Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.

Email a quote request Call (978) 295-7538

Call a specialist — (978) 295-7538

Pricing, freight and lead time. Mon–Fri 9 AM–5 PM ET.

Estimated delivery: 3–8 business days

Ships direct from Mi-T-M

Authorized Mi-T-M dealer

Tax-exempt & PO accepted

30-day returns

Expert phone support

Need help choosing? Talk to an expert

+1 (978) 295-7538

AM1-HM04-05M Air Compressor for Shop Floor Pneumatic Service

The 5-gallon gasoline air compressor makes do-it-yourself projects possible. Experience dependable energy for projects at home, businesses or small properties. Facility managers and contractors specify the AM1-HM04-05M when uptime and serviceability matter more than entry-price tags.

AM1-HM04-05M Tank, Pump, and Power Configuration

Specifications cover the rated CFM, tank volume, and motor configuration that determine which tools and stations the AM1-HM04-05M supports.

Compressor Pump — Cast iron cylinder · Splash lubricated aluminum crankcase · Stainless-steel braided discharge hose · Cartridge air filter
Chassis — Powder coated steel frame and roll cage · Powder coated twin tank receivers.
Components — Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Quality pilot valve unloader · Start/stop control set at 95 to 125-PSI
Warranty — 1 Year Compressor Pump · 3 Year Mi-T-M Engine.

AM1-HM04-05M Applications and Environments

The AM1-HM04-05M sizes for shops feeding pneumatic tools and equipment: automotive service bays, woodworking shops, body shops, agricultural maintenance buildings, manufacturing assembly stations, and HVAC contractor home base. Tank volume and CFM align with continuous-duty tools like impact wrenches, sanders, and paint sprayers without staged starvation.

AM1-HM04-05M Pump Build and Duty Cycle

Service intervals follow the pump-oil schedule in the operator manual.

Specifications

CFM @ PSI	4.8 @ 90
Displacement/ Engine	212cc Mi-T-M OHV
Engine Idle Control	Cable Throttle
Net Weight	77.00 lbs.
Shipping Weight	85.00 lbs.
Length	21.00 in.
Width	17.50 in.
Height	23.25 in.

Documents

Product Manual

Product Sheet

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
We verify your certificate and mark your account tax-exempt — usually within one business day.
Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Mi-T-M AM1-HM04-05M Air Compressor – 5-Gal, 4.8 CFM, OHV ...

View Cart

$1,061.00

Frequently Asked Questions

What CFM does the AM1-HM04-05M produce?

4.8 CFM @ 90 PSI from a single stage pump. It cycles between 95 and 125-PSI on its start/stop control.

What engine is on this compressor?

It uses a 212cc Mi-T-M OHV engine. Engine idle is managed with a cable throttle.

How is the frame built?

The twin tank receivers are powder coated and protected by a powder coated steel frame and roll cage.

What pump design does it have?

The pump has a cast iron cylinder, a splash lubricated aluminum crankcase and a stainless-steel braided discharge hose. Intake air passes through a cartridge air filter.

Does it have separate tank and outlet gauges?

It does. The regulator carries two gauges, one for tank pressure and one for outlet pressure. Drain and pressure relief valves are also on the unit.

How much does it weigh and what warranty applies?

Mi-T-M lists 77.00 lbs. net weight. Coverage is 1 Year Compressor Pump and 3 Year Mi-T-M Engine.

How the Mi-T-M AM1-HM04-05M Air Compressor Compares to Other Mi-T-M air compressors

Every Mi-T-M air compressor we carry, side by side. Not sure which size fits the job? Call +1 (978) 295-7538.

Model	This model Mi-T-M AM1-HM04-05M Air Compressor	Mi-T-M AM1-HH04-05M Air Compressor
Price	$1,061	$1,308
Engine	212cc Mi-T-M	196cc Honda GX200
Link	You're here	View
