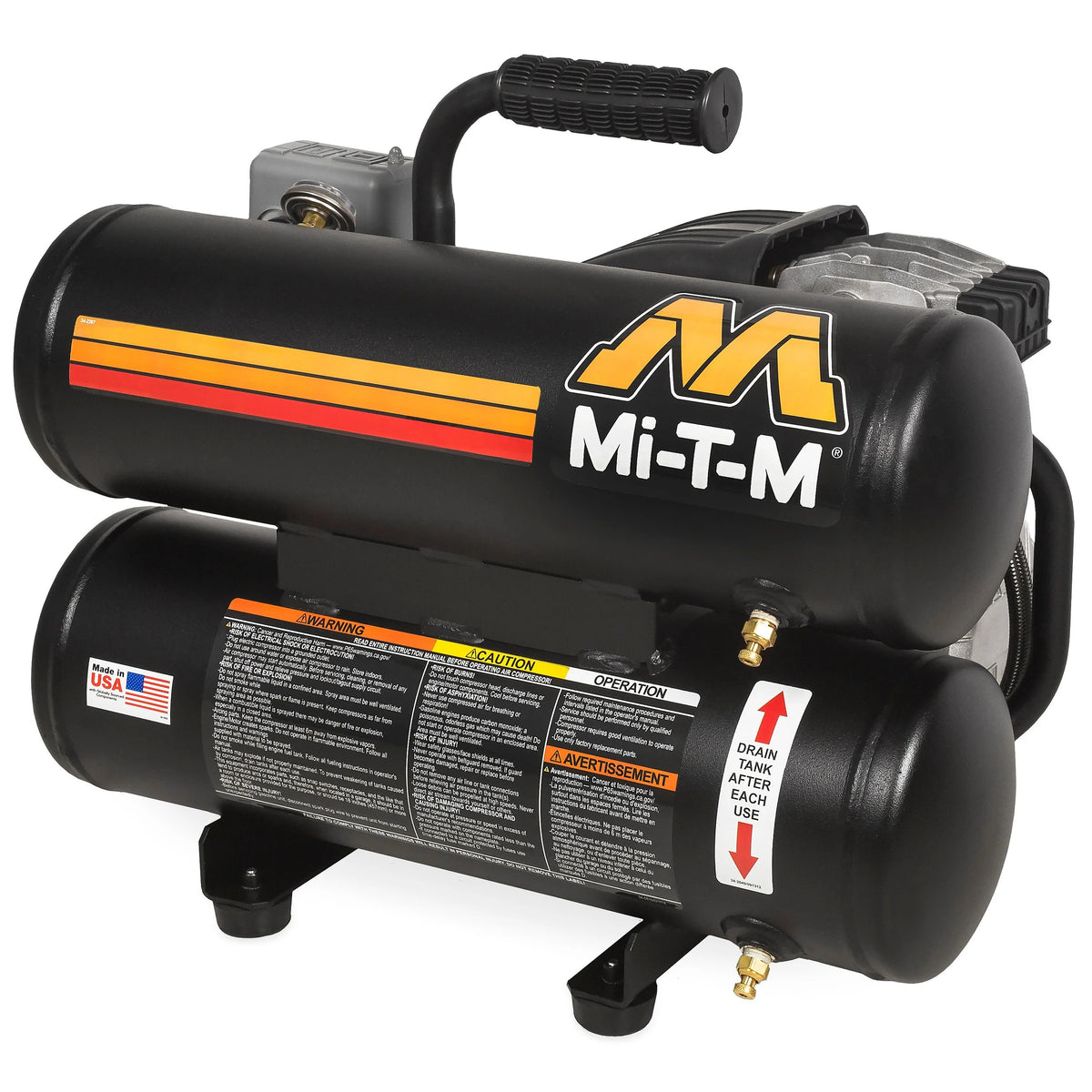

Mi-T-M AM1-HE02-05M Air Compressor – 5-Gal, 4.2 CFM, Electric
Authorized dealerSKU: AM1-HE02-05MIn stock$789.00
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Call a specialist — (978) 295-7538
Pricing, freight and lead time. Mon–Fri 9 AM–5 PM ET.
Estimated delivery: 3–8 business days
Ships direct from Mi-T-M
Authorized Mi-T-M dealerGenuine Mi-T-M equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Expert phone supportTalk to a product specialist Mon–Fri, 9 AM–5 PM ET: (978) 295-7538
Need help choosing? Talk to an expert
+1 (978) 295-7538AM1-HE02-05M Air Compressor for Shop Floor Pneumatic Service
The compact 5-gallon model is portable yet high-output and is perfect for a variety of projects. Facility managers and contractors specify the AM1-HE02-05M when uptime and serviceability matter more than entry-price tags.
AM1-HE02-05M Tank, Pump, and Power Configuration
Specifications cover the rated CFM, tank volume, and motor configuration that determine which tools and stations the AM1-HE02-05M supports.
- Compressor Pump — Cast iron cylinder · Splash lubricated aluminum crankcase · Stainless-steel braided discharge hose · Inlet air filter
- Motor — Thermal overload motor protection · 8-foot power cord
- Chassis — Powder coated twin tank assembly · Protective pump/motor housing.
- Components — Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Industrial interchange quick connect fittings · Start/stop control set at 95 to 125-PSI
- Warranty — 1 Year Compressor Pump · 1 Year Electric Motor.
AM1-HE02-05M Applications and Environments
The AM1-HE02-05M sizes for shops feeding pneumatic tools and equipment: automotive service bays, woodworking shops, body shops, agricultural maintenance buildings, manufacturing assembly stations, and HVAC contractor home base. Tank volume and CFM align with continuous-duty tools like impact wrenches, sanders, and paint sprayers without staged starvation.
AM1-HE02-05M Pump Build and Duty Cycle
Service intervals follow the pump-oil schedule in the operator manual.
Specifications
| CFM @ PSI | 4.2 @ 90 |
| Horsepower/Motor | 2.0 HP, 120V, 15.0A |
| Plug Type | NEMA 5-15P |
| Net Weight | 61.00 lbs. |
| Shipping Weight | 70.00 lbs. |
| Length | 20.50 in. |
| Width | 15.50 in. |
| Height | 17.50 in. |
Documents
Manufacturer's Warranty
This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.
For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com
B2B & Tax-Exempt Purchases
We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.
How to place a tax-exempt order:
- Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
- We verify your certificate and mark your account tax-exempt — usually within one business day.
- Place your order and sales tax will not be charged.
For volume pricing or purchase orders, call +1 (978) 295-7538.
Shipping & Returns
Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.
Processing & delivery: in-stock orders ship in 2–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order equipment shows its lead time on this page.
Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.
Cancellations: cancel any time before your order ships. Refunds are issued for the order total minus a non-refundable payment processing fee, which may apply, so a cancellation is not always a 100% refund. No fee is deducted if we cancel the order or the item arrives damaged or defective.
30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.
$789.00
Complete your setup
Commonly paired with the Mi-T-M AM1-HE02-05M Air Compressor – 5-Gal, 4.2 CFM, Electric
Frequently Asked Questions
How the Mi-T-M AM1-HE02-05M Air Compressor Compares to Other Mi-T-M air compressors
The closest 5 models from the 6 Mi-T-M air compressors we carry, by capacity. Not sure which size fits the job? Call +1 (978) 295-7538.
| Model |
This model
Mi-T-M AM1-HE02-05M Air Compressor |
Mi-T-M AM1-HE15-03QM Air Compressor |
Mi-T-M AM1-PE15-08M Air Compressor |
Mi-T-M AM1-PE15-20M Air Compressor |
Mi-T-M AM1-PE02-08M Air Compressor |
|---|---|---|---|---|---|
| Price | $789 | $544 | $1,554 | $1,875 | $1,618 |
| Air delivery | 4.2 CFM | 4 CFM | 7.3 CFM | 7.3 CFM | 8.2 CFM |
| Tank | 5 gal | 3 gal | 8 gal | 20 gal | 8 gal |
| Motor (per pump) | 2 HP | 1.5 HP | 1.5 HP | 1.5 HP | 2 HP |
| Link | You're here | View | View | View | View |
