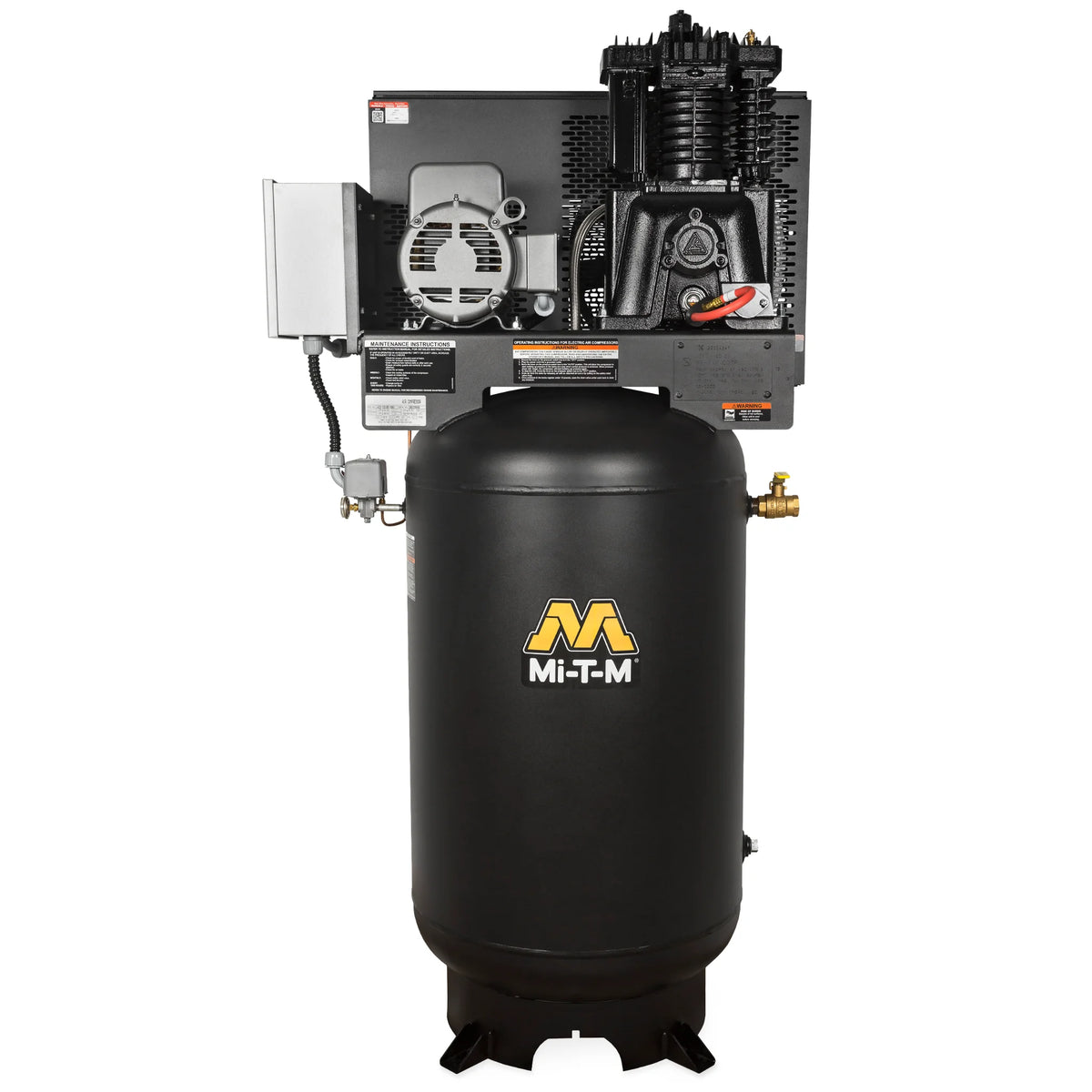

Mi-T-M ACS-46375-80VM Simplex Compressor – 23.5 CFM @ 175 PSI, 80-Gal, 460V 3Ø
$5,986.00
Free shipping on this item
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Planning around a job date? Confirm current availability and delivery timing with us before ordering.
Authorized Mi-T-M dealerGenuine Mi-T-M equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert
+1 (978) 295-7538ACS-46375-80VM 7.5 HP Two-Stage Simplex Air Compressor
The Mi-T-M ACS-46375-80VM is a 80-gallon vertical two-stage air compressor built for shops and service bays that run air tools all day. Its three-phase 460V motor drives a cast-iron pump rated to 175 PSI, delivering 23.5 CFM @ 175 PSI of steady air.
ACS-46375-80VM Air Output and Power
This unit is wired for 460V 3-phase service and rated at 23.5 CFM @ 175 PSI.
- Two-stage cast-iron pump — splash-lubricated and built for continuous shop duty, delivering up to 175 PSI
- 23.5 CFM @ 175 PSI — runs impact wrenches, sanders, and spray guns without stalling
- 80-gallon vertical tank — saves floor space in tighter bays
- 460V 3-phase motor — industrial low-RPM design for longer life and cooler running
- Magnetic starter included — provides thermal-overload protection and reliable across-the-line starting
ACS-46375-80VM Applications and Environments
Automotive service centers, fabrication shops, fleet-maintenance garages, and manufacturing lines use the ACS-46375-80VM to power impact wrenches, sanders, spray equipment, and other pneumatic tools. The 80-gallon reserve keeps up with continuous-duty tool use. It ships on a pallet by freight at about 725 pounds and is warranted for 1 year electric motor, 2 year pump exchange.
Specifications
| Horsepower | 7.5 HP |
| Configuration | Simplex (single pump/motor) |
| Stage | Two-Stage |
| Pump | Cast iron compressor pump, splash lubricated |
| Air Delivery | 23.5 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Size | 80 Gallon |
| Tank Orientation | Vertical |
| Voltage | 460V |
| Phase | Three Phase (3φ) |
| Motor Starter | Magnetic starter included |
| Dimensions (L×W×H) | 38.50 x 25.00 x 73.50 in |
| Net Weight | 618 lb. |
| Shipping Weight | 725 lb. |
| Warranty | 1 Year Electric Motor, 2 Year Pump Exchange |
| UPC | 16977176006 |
| Model / MPN | ACS-46375-80VM |
| Pump RPM | 1250 |
| Bolt Down (LxW) | 15.63 x 15.63 in. |
| Factory Options | IX-0070 Unit Shipped Pre-Assembled (must be ordered with unit and cannot be added later) |
