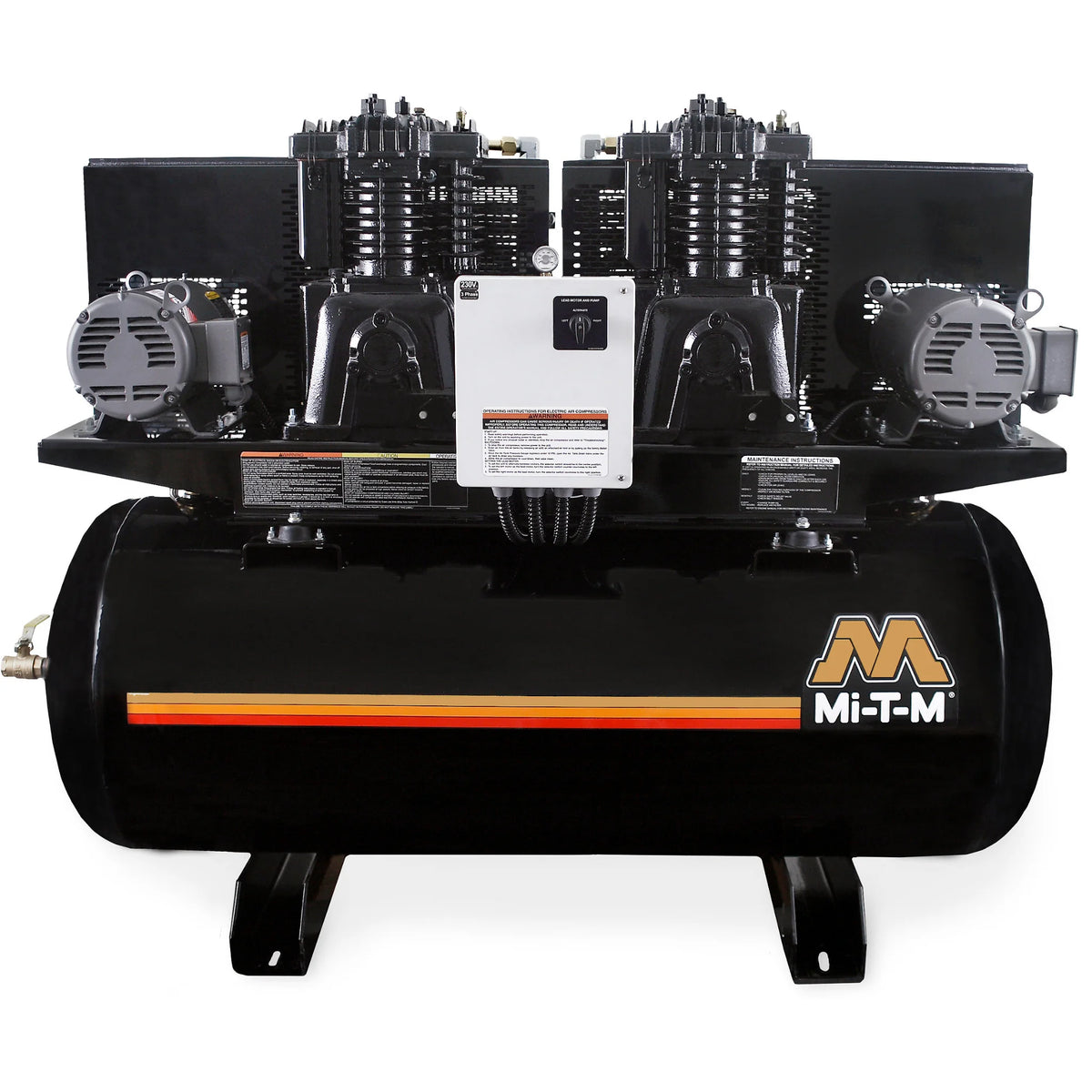

ACD-23175-120HM 7.5 HP Two-Stage Duplex Air Compressor

The Mi-T-M ACD-23175-120HM is a 120-gallon horizontal two-stage air compressor built for shops and service bays that run air tools all day. Its single-phase 230V motor drives a pair of cast-iron pumps rated to 175 PSI, delivering 46.4 CFM @ 175 PSI of steady air.

ACD-23175-120HM Air Output and Power

This unit is wired for 230V 1-phase service and rated at 46.4 CFM @ 175 PSI.

  • Two-stage cast-iron pump — splash-lubricated and built for continuous shop duty, delivering up to 175 PSI
  • 46.4 CFM @ 175 PSI — enough volume to run multiple air tools at once without pressure drop
  • 120-gallon horizontal tank — stores a large reserve so the motor cycles less often
  • 230V 1-phase motor — industrial low-RPM design for longer life and cooler running
  • Magnetic starter included — provides thermal-overload protection and auto-alternating lead/lag control across both motors
  • Dual pump-and-motor assemblies — built-in redundancy keeps air flowing if one head is serviced

ACD-23175-120HM Applications and Environments

Automotive service centers, fabrication shops, fleet-maintenance garages, and manufacturing lines use the ACD-23175-120HM to power impact wrenches, sanders, spray equipment, and other pneumatic tools. The duplex arrangement suits high-demand floors that cannot afford downtime — two pumps share the load and provide backup. It ships on a pallet by freight at about 1109 pounds and is warranted for 1 year electric motor, 2 year pump exchange.

Specifications

Horsepower 7.5 HP (per motor, dual)
Configuration Duplex (two pumps/motors)
Stage Two-Stage
Pump Two cast iron compressor pumps, splash lubricated
Air Delivery 46.4 CFM @ 175 PSI
Maximum Pressure 175 PSI
Tank Size 120 Gallon
Tank Orientation Horizontal
Voltage 230V
Phase Single Phase (1φ)
Motor Starter Magnetic starter included
Dimensions (L×W×H) 74.00 x 26.50 x 58.00 in
Net Weight 1005 lbs
Shipping Weight 1109 lbs
Warranty 1 Year Electric Motor, 2 Year Pump Exchange
UPC 16977186777
Model / MPN ACD-23175-120HM

Documents

Mi-T-M ACD-23175-120HM Specification Sheet (PDF)

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at +1 (978) 295-7538 or email info@uscleaningtools.com

B2B & Tax-Exempt Purchases

We supply contractors, restoration companies, property managers, schools, government agencies, and other tax-exempt organizations.

How to place a tax-exempt order:

  1. Write to us through our Contact Us page or email info@uscleaningtools.com and attach your valid tax exemption certificate (state resale or exemption certificate).
  2. We verify your certificate and mark your account tax-exempt — usually within one business day.
  3. Place your order and sales tax will not be charged.

For volume pricing or purchase orders, call +1 (978) 295-7538.

Shipping & Returns

Free shipping on most brands for orders over $300, delivered to the lower 48 states. Any brand-specific freight rate is shown at checkout before you pay.

Processing & delivery: in-stock orders are processed within 1–2 business days and typically deliver in 5–7 business days. Tracking is emailed within 24 hours of shipment. Built-to-order and backordered equipment shows its lead time on this page.

Freight deliveries: inspect your equipment on arrival and note any damage on the delivery receipt. Items damaged in transit or defective on arrival are fully covered at no cost to you.

Cancellations: cancel any time before your order ships for a full 100% refund.

30-day returns: return unused equipment in its original packaging within 30 days of delivery. Change-of-mind returns are subject to a restocking fee. To start a return, email info@uscleaningtools.com or call +1 (978) 295-7538.

Product Image
Added to cart
Mi-T-M ACD-23175-120HM Air Compressor – 7.5 HP, 120-Gal Horizontal, 230V 1φMi-T-M ACD-23175-120HM Air Compressor – 7.5 HP, 120-Gal H...
View Cart
$15,504.00

Frequently Asked Questions

What voltage and phase is the ACD-23175-120HM?
It runs on 230V 1-phase power. Confirm your shop's incoming service matches before ordering, since these are wired for a specific voltage and phase.
How much air does the ACD-23175-120HM deliver?
46.4 CFM @ 175 PSI. That feeds high-demand shops running several air tools or a busy service floor.
What does "duplex" mean on the ACD-23175-120HM?
Duplex means two separate pump-and-motor assemblies share one 120-gallon tank. They alternate or run together for higher output and redundancy — if one needs service, the other keeps the shop running.
Does the ACD-23175-120HM ship freight?
Yes. At about 1109 lbs it ships by LTL freight on a pallet, not parcel. A liftgate or dock is recommended for delivery.
What warranty comes with the ACD-23175-120HM?
1 Year Electric Motor, 2 Year Pump Exchange.
