Mercury Floor Machines H-13E Hercules Floor Machine โ€“ 13

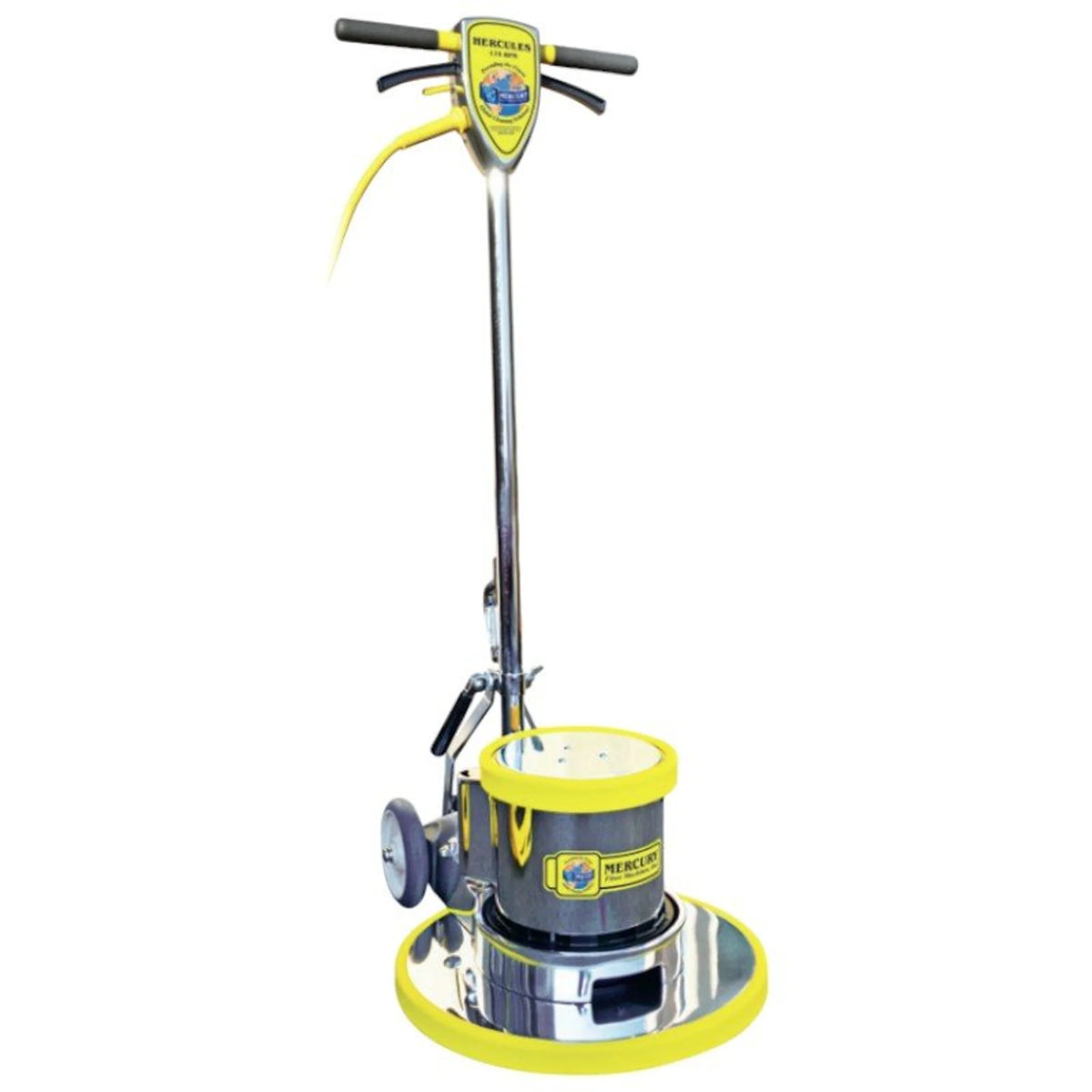

Mercury Floor Machines H-13E Hercules Floor Machine โ€“ 13", 175 RPM, 103 lbs

Brand: Mercury Floor Machines SKU: H-13E In Stock – Ready to Ship
$1,709.00 $1,748.00 Save $39.00
FREE SHIPPING on this item

Ships from US manufacturer with factory warranty

Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Authorized Retailer Factory-authorized dealer with genuine products
Manufacturer's Warranty Full manufacturer warranty included
30-Day Returns Hassle-free returns within 30 days
Lowest Price Guaranteed We match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

Mercury H-13E Hercules: 13" Super Heavy-Duty Floor Machine at 175 RPM

The H-13E is the narrowest model in the Hercules series โ€” a 13" apron at 175 RPM, weighing 103 lbs. It shares the same 1.5 HP dual-capacitor A/C motor and triple-planetary gearbox as the wider Hercules models (H-15E through H-21E), but fits through access points that no other Hercules can reach. At 103 lbs on a 13" pad, the H-13E delivers the highest pad pressure per square inch in the entire Hercules lineup.

H-13E Motor, Transmission, and Pad Specifications

  • Apron size: 13" โ€” the narrowest in the Hercules series; accesses zones that all wider models cannot
  • Speed: 175 RPM โ€” single-speed for stripping, scrubbing, buffing, and bonnet cleaning
  • Machine weight: 103 lbs โ€” lighter than H-15E (104 lbs) through H-21E (108 lbs) by 1โ€“5 lbs, but concentrated over a smaller pad area for highest PSI in the series
  • Motor: 1.5 HP A/C dual-capacitor โ€” run capacitor maintains power factor under sustained load; 15A draw
  • Transmission: Triple-planetary gearbox โ€” three sequential gear sets multiply torque to the pad
  • Power cord: 50-foot 14/3-gauge safety cord
  • Dimensions: 21" x 21" x 48"

Where the H-13E Fits When No Other Machine Can

The H-13E exists for the narrowest cleaning zones in commercial and industrial facilities: walk-in freezer interiors with 14" aisle clearance, server rack corridors, laboratory fume hood service lanes, equipment maintenance bays, and confined stairwell landings. Standard-duty 13" floor machines (typically 75โ€“85 lbs) access the same width but deliver less downward force and less gearbox torque. The H-13E at 103 lbs brings Hercules-series weight and triple-planetary torque to a footprint that no competing heavy-duty machine in the lineup can match for narrowness. For facilities that currently use manual scrubbing or consumer-grade machines in these confined zones, the H-13E produces results โ€” single-pass stripping, effective chemical scrubbing, professional gloss buffing โ€” that manual methods cannot achieve at the same labor cost.

Pad Pressure, Triple-Planetary Gearbox, and the 13" Advantage

At 103 lbs on the narrowest pad in the Hercules series, the H-13E produces the highest localized pad pressure of any model in the lineup. The same weight distributed over a 13" pad area results in more force per square inch than a 19" or 21" machine at 107โ€“108 lbs. This is the key mechanical basis for the H-13E's stripping effectiveness in confined zones: the black pad contacts finish with maximum localized force relative to its size, which, combined with the triple-planetary gearbox's torque multiplication, produces single-pass finish removal on most commercial-grade wax systems. The dual-capacitor A/C motor prevents the heat accumulation under sustained load that single-capacitor motors experience โ€” relevant in confined spaces where the machine may run at maximum load continuously due to tight turns and frequent direction changes requiring the motor to maintain torque throughout.

Specification Value
Model H-13E
Apron Size 13"
Speed 175 RPM
Machine Weight 103 lbs
Motor 1.5 HP A/C Dual-Capacitor
Amperage Draw 15A
Transmission Triple-Planetary
Dimensions 21" x 21" x 48"
Power Cord 50 ft, 14/3 gauge

Documents

Owner's Manual ยท Wiring Diagram ยท Parts List ยท Sell Sheet

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at (978) 295-7538 or email info@uscleaningtools.com

Product Image
Added to cart
Mercury Floor Machines H-13E Hercules Floor Machine โ€“ 13 Mercury Floor Machines H-13E Hercules Floor Machine โ€“ 13"...
View Cart

Frequently Asked Questions

How does the H-13E compare to the H-15E?
The H-13E weighs 103 lbs with a 13" apron. The H-15E weighs 104 lbs with a 15" apron. Both share the same 1.5 HP dual-capacitor A/C motor and triple-planetary gearbox at 175 RPM. The H-13E is 2 inches narrower and 1 lb lighter, but delivers higher pad pressure per square inch due to the smaller pad area. The H-13E reaches zones the H-15E cannot access.
What pad sizes are compatible with the H-13E?
The H-13E uses the smallest Hercules pad size. Standard 11" or 12" floor pads fit the machine โ€” black (stripping), green (scrubbing), red (cleaning), white or tan (buffing). Confirm pad driver diameter from the parts list for exact size compatibility. The 13" apron accommodates the pad driver without contact with the apron skirt.
At 103 lbs on a 13" pad, how much pressure does the H-13E deliver?
At 103 lbs distributed over a 13" pad area, the H-13E produces approximately 1.0โ€“1.1 lbs per square inch of downward force โ€” the highest of any model in the Hercules series. Wider models at 104โ€“108 lbs produce less PSI because the same weight spreads over larger pad areas. This localized pressure is the primary reason the H-13E can strip effectively in confined zones despite its narrow footprint.
What electrical supply does the H-13E require?
The H-13E draws 15A at full load. Two 15A circuits are recommended for extended stripping or heavy scrubbing. In confined zones like server rooms or laboratory corridors, outlet availability may be limited โ€” plan the power cord routing before starting the job to avoid cord obstruction in tight spaces.
How does the triple-planetary gearbox benefit stripping in confined spaces?
In confined spaces, the machine makes frequent direction changes and tight turns that place sustained torque demands on the motor and gearbox. The triple-planetary gearbox uses three gear sets to multiply torque from the motor to the pad, maintaining full rotational force even when the machine slows to navigate tight corners. Single-reduction gearboxes lose more torque at low walking speeds and tight-turn conditions.
Can the H-13E strip finish in walk-in freezers or cold storage areas?
Yes, with appropriate chemistry for low-temperature environments. Cold-temperature strippers require longer dwell time โ€” typically 10โ€“20 minutes versus 5โ€“10 minutes at room temperature โ€” before mechanical action. The H-13E at 103 lbs and 175 RPM provides the mechanical force needed once the chemical has softened the finish bond. Confirm that the floor finish and stripper used are rated for the operating temperature of the space.
