Ebac WM80 Whole House Ducted HVAC Dehumidifier – 110V Wall-Mount

Ebac WM80 Wall-Mounted Humidity Control for Commercial Rooms

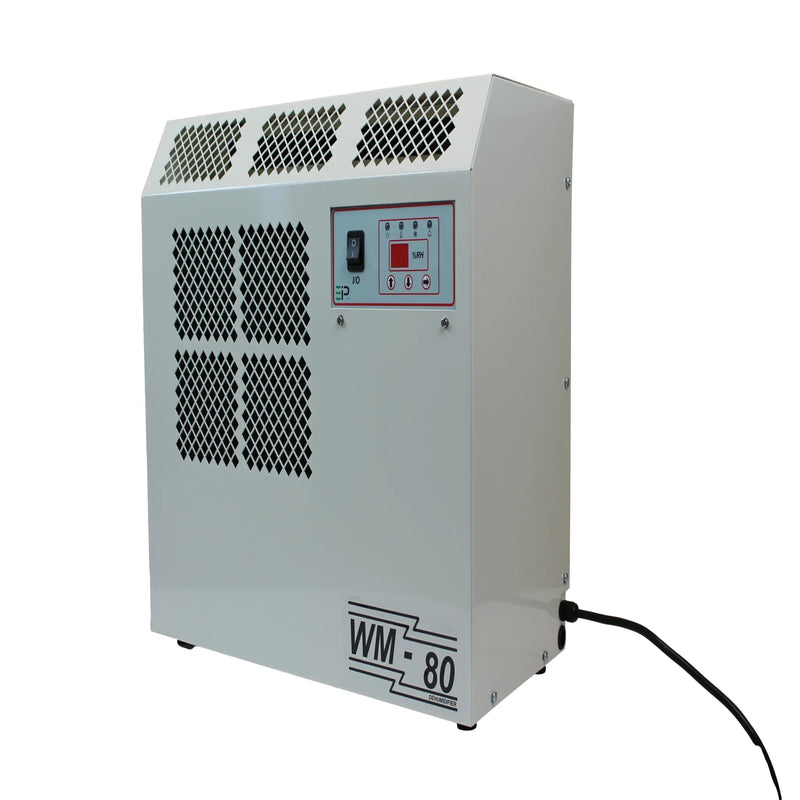

Ebac WM80 dehumidifier hangs on the wall and removes a typical 62 pints of water per day, keeping the floor clear in rooms where every square foot is in use. It is sized for spaces up to 7,063 cubic feet and plugs into a standard 110V outlet. Facility managers use it to hold humidity steady in small commercial rooms without a floor unit getting in the way.

Ebac WM80 Mounting and Drainage

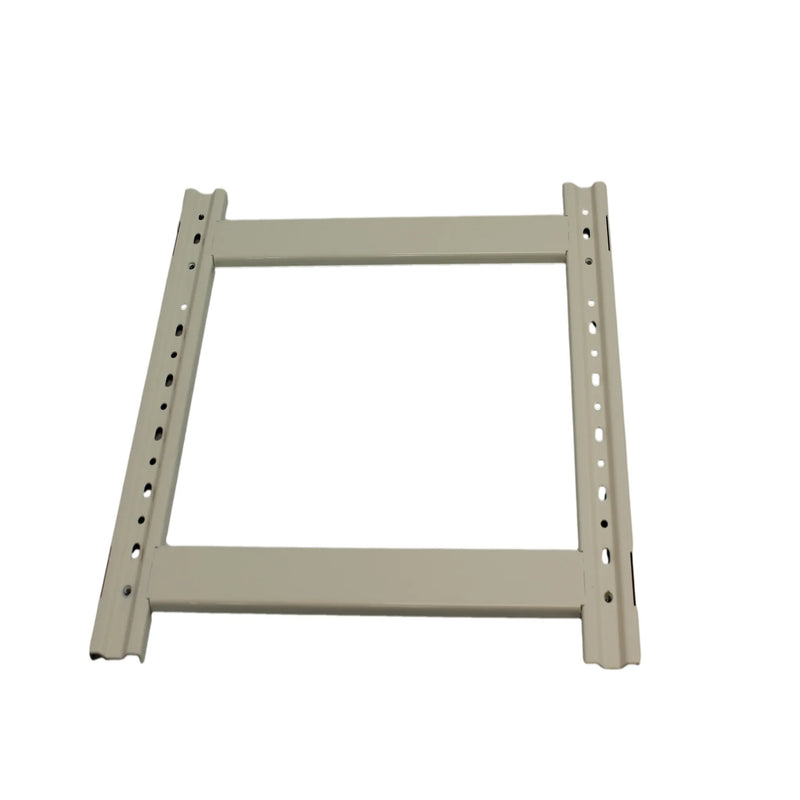

Installation is simple. The wall mounting bracket comes with the unit, the internal condensate pump sends water out through the 3/8" tube, and rubber feet let it stand free on a shelf or floor if a wall is not an option.

• Electronic digital humidity control — set the target level and the unit holds it without manual switching.
• Hot gas defrost with temperature sensitive control — frost is cleared from the coil when the room runs cold, down to 33°F.
• Pump fault indicator — the status panel flags a pump problem so it can be dealt with before water becomes an issue. The on/off control is right there on the unit.
• Cross-flow fan at 160 CFM — moves room air across the coil at a noise level of 58 dBA.
• Washable air filter — rinse and refit it as part of routine maintenance.

Ebac WM80 Applications and Environments

This wall-mounted design suits offices, retail stores, restaurants, bars and salons where a floor dehumidifier would be in the way of staff or customers. Museums and storerooms use it to protect what is on the shelves, and it also fits computer and telecom rooms, garages, cellars and animal enclosures. Hotels and motels put the Ebac WM80 in spa rooms, where warm, wet air builds up fast. At 85.5 lbs, plan for a solid wall and two sets of hands when lifting it onto the bracket.

Specifications

Documents

Spec Sheet

Manual

WM80 Wiring Diagram (PDF)

WM80 Wiring Schematic (PDF)
