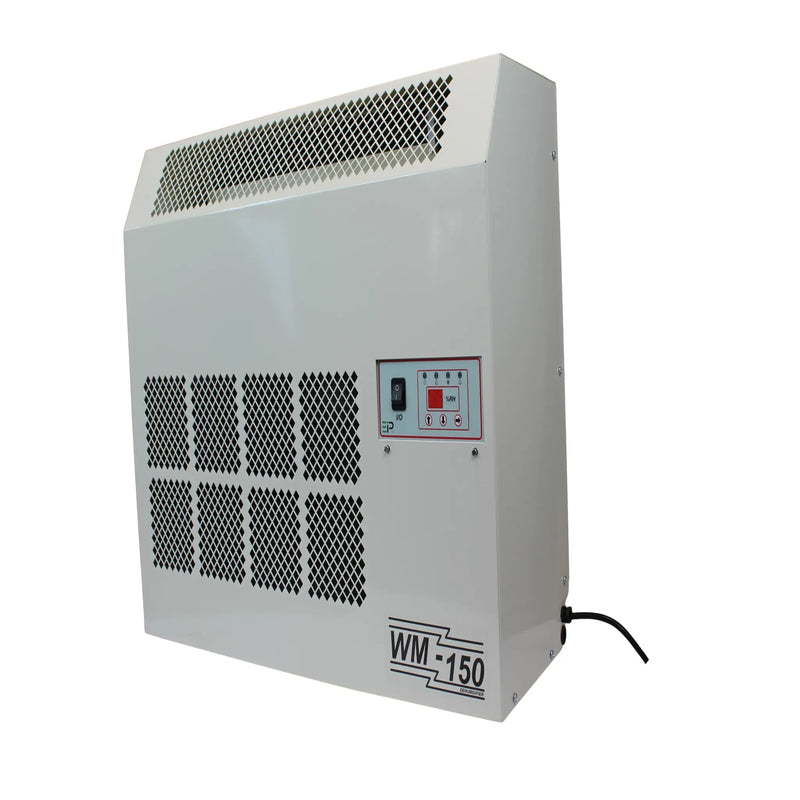

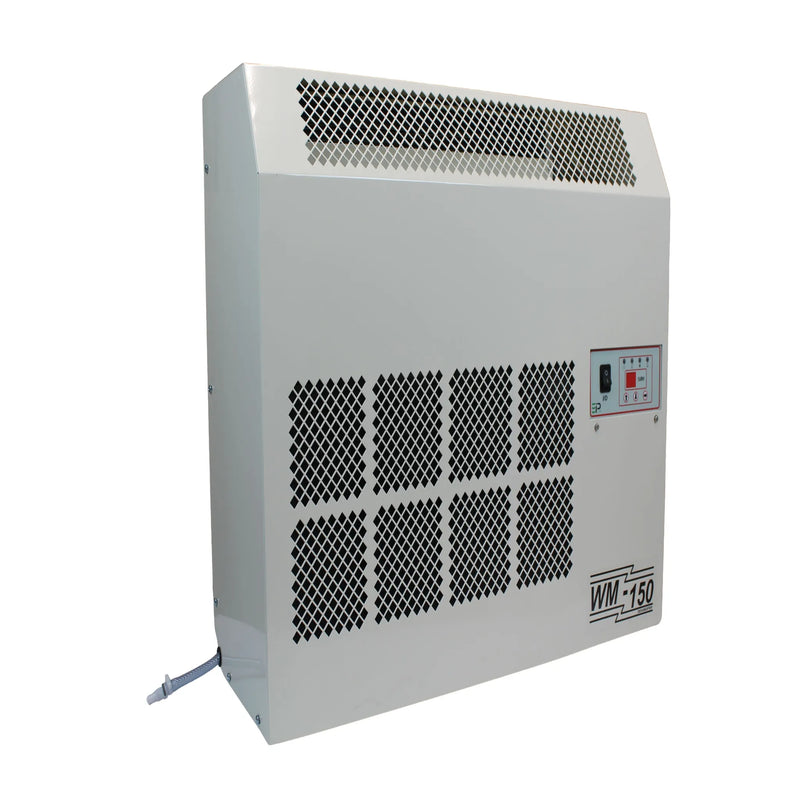

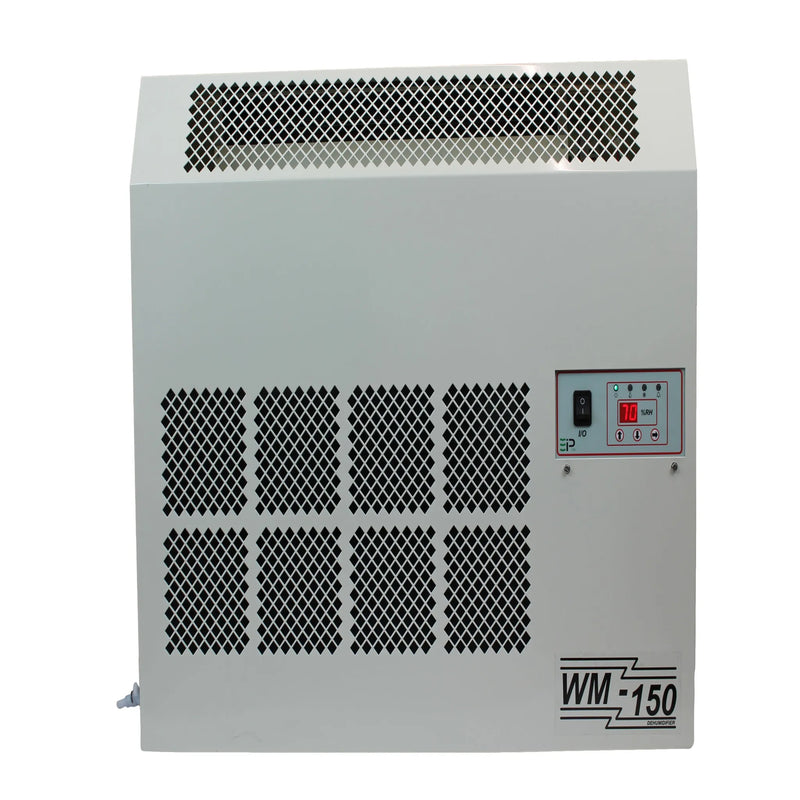

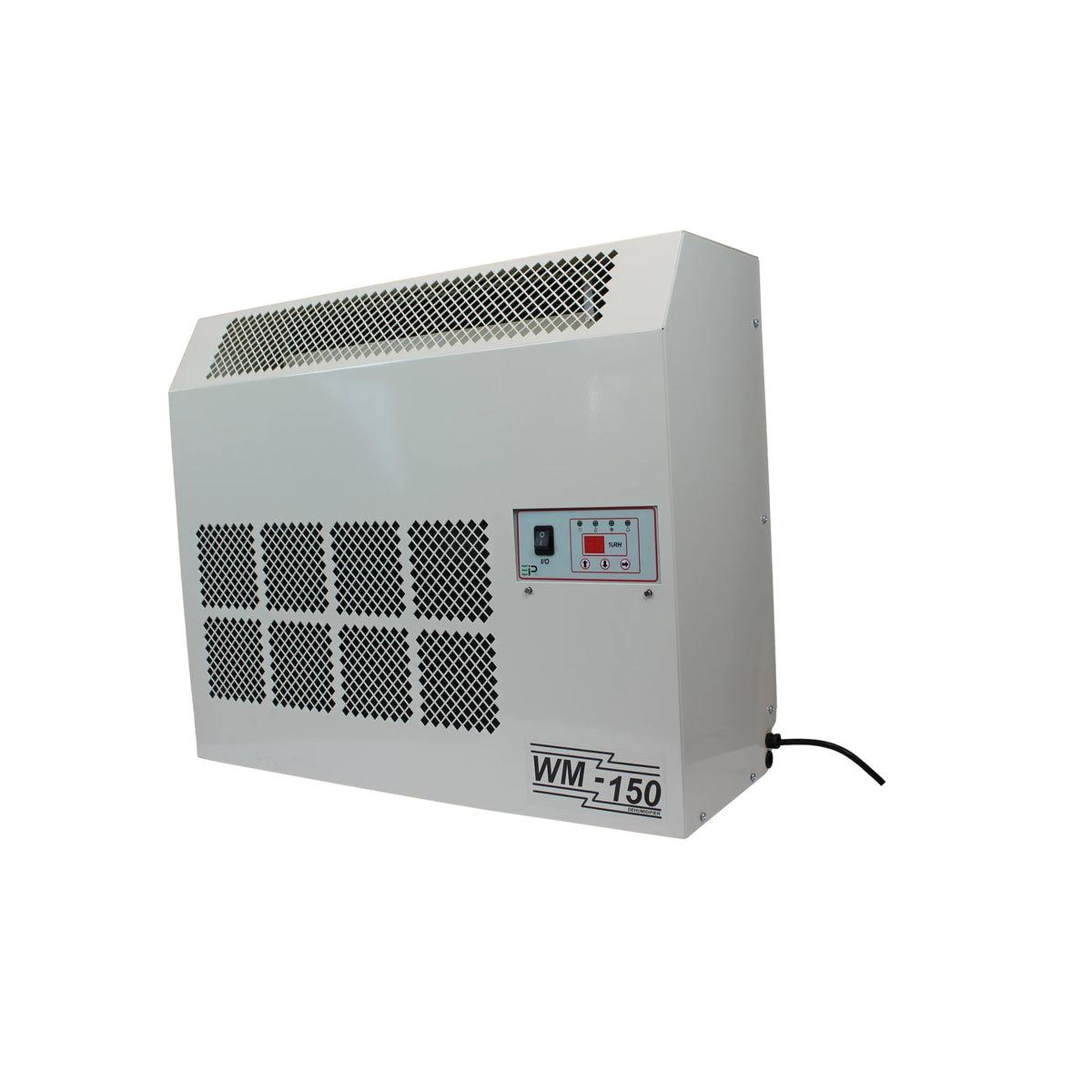

Ebac WM150-D Whole House Ducted HVAC Dehumidifier – 110V Wall-Mount

Ebac WM150-D Wall-Hung Dehumidifier for Larger Commercial Spaces

Ebac WM150-D dehumidifier removes a typical 71 pints of moisture per day from spaces up to 10,594 cubic feet while mounted up on the wall. Its cross-flow fan moves 341 CFM, which helps it reach air across a bigger room. For facility managers, that means drier air in busy areas with nothing taking up floor space.

Ebac WM150-D Airflow and Controls

The WM150-D pairs its high airflow with electronic digital humidity control, so you set a target and let the unit hold it. The status indicator panel shows what it is doing at a glance, and a simple on/off control covers the rest. Noise sits at 58 dBA.

• Reverse cycle defrost with temperature sensitive control — the coil is defrosted automatically in cool rooms, with an operating range of 33°F to 95°F.
• Internal condensate pump — water leaves through the 3/8" PVC tube, so the unit does not need to sit beside a floor drain.
• Pump fault indicator — you get a warning if the pump stops working instead of finding out from a wet floor.

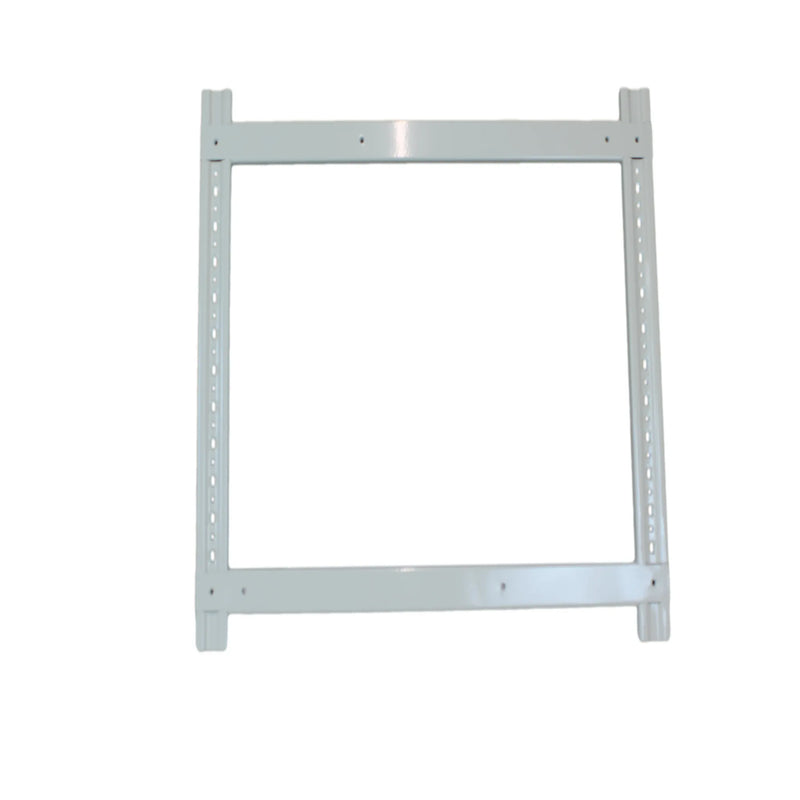

• Wall mounting bracket included — fix the bracket, lift the unit on and secure it; rubber feet also let it stand free if needed.
• Washable air filter — clean it on a regular schedule rather than replacing it.

Ebac WM150-D Applications and Environments

Wall mounting keeps this unit out of the way in offices, shops, restaurants, bars and salons. Museums and storerooms rely on it to keep stored items away from damp air, and it also works in computer and telecommunications rooms, garages, cellars and animal enclosures. Hotel and motel spa rooms are another common location for the Ebac WM150-D. The unit weighs 165 lbs and draws 13 A at 110V, so confirm the wall can carry it and the circuit has room before you install.

Specifications

Documents

Spec Sheet

Manual

WM150-D Wiring Diagram (PDF)

WM150-D Wiring Schematic (PDF)
