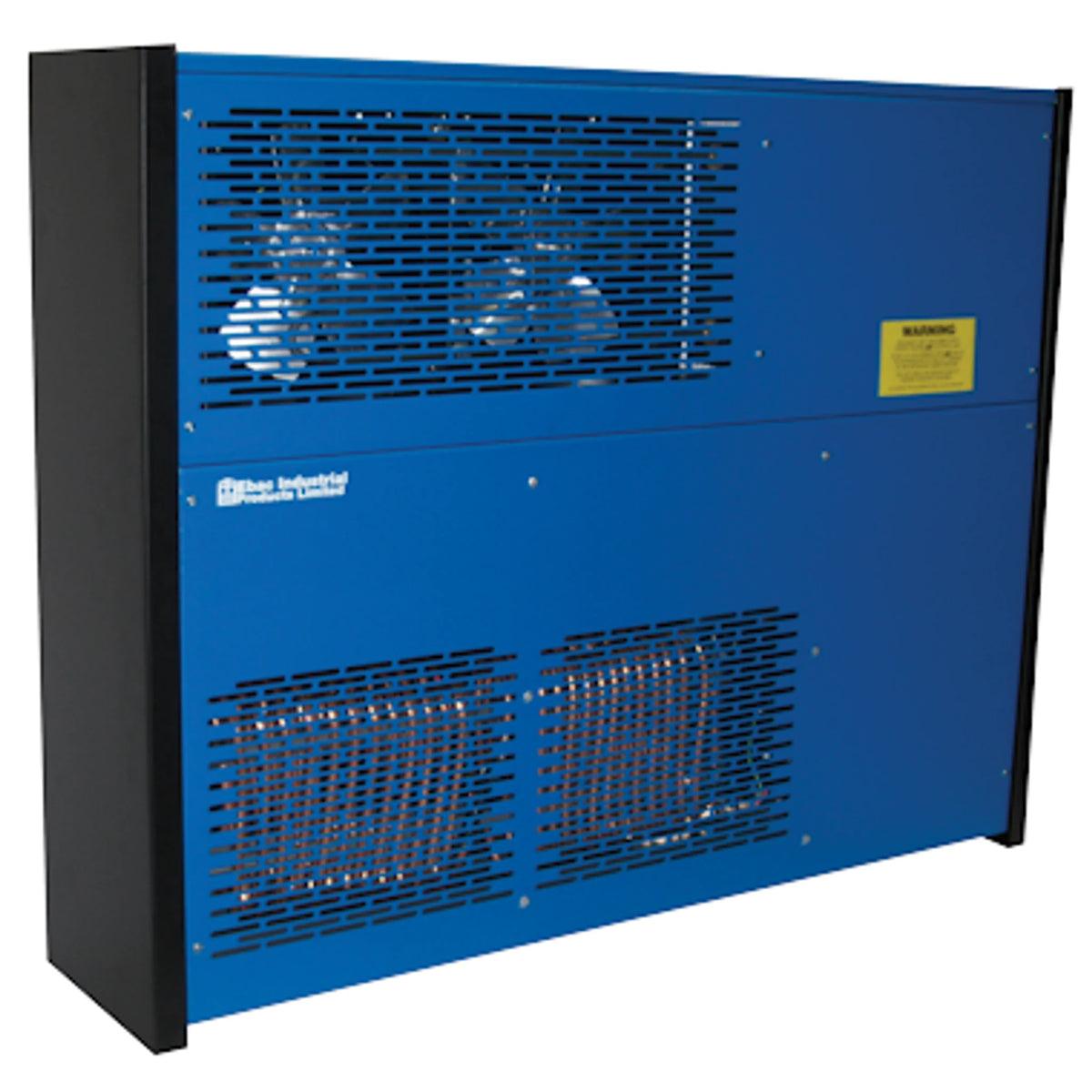

Ebac FD100 13223BB-US Lumber Dryer – 220V, Up to 7m³ Loads, STC1 Control

Ebac FD100 13223BB-US Lumber Dryer – 220V, Up to 7m³ Loads, STC1 Control

Brand: EbacSKU: 13223BB-USIn Stock – Ready to Ship
$7,933.00
FREE SHIPPING – You save $200+ on freight

Ships from US manufacturer with factory warranty

Ach Direct DebitAmazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay USDC Visa
Authorized RetailerFactory-authorized dealer with genuine products
Manufacturer's WarrantyFull manufacturer warranty included
30-Day ReturnsHassle-free returns within 30 days
Lowest Price GuaranteedWe match any competitor's price
Ordering 3+ units? Call for volume pricing – (978) 295-7538
Order before 5:00 PM EST for same-day dispatch. Estimated delivery:

Need help choosing? Talk to an expert

(978) 295-7538

FD100 Lumber Dryer for Production Workshops

The Ebac FD100 dries up to seven cubic meters of timber per load and brings wood as low as 6% moisture content, which suits stock headed for heated interiors. It runs on 220V power, ships with the STC1 controller, and in normal use needs no supplementary heaters or venting.

FD100 13223BB-US Capacity and Cycle

  • Up to 7 m³ per load moves a workshop past hobby volumes into regular production drying
  • Reaches as low as 6% moisture content, the band furniture and flooring need for interior stability
  • No supplementary heaters or venting normally required, which simplifies the chamber and lowers running cost
  • Included STC1 controller runs temperature and proportional timing so the operator sets a cycle and lets it work
  • Low-humidity dehumidification drying brings the load down gradually to limit splitting and degrade
  • 220V supply matches the heavier circuits a busy workshop already runs

FD100 Applications and Environments

The FD100 fits production furniture and cabinet shops, flooring makers, and small commercial mills that dry their own stock. It sits inside a chamber the user builds and pulls moisture from the air so the timber releases water at a controlled rate. Drying to interior moisture content on site removes the wait and cost of sending wood out to a contract kiln.

Specifications

Typical Load Up to 7 m³
Target Moisture As low as 6% MC
Power Supply 220V / 1-Phase / 60Hz
Power (Dryer) 1,100 W
Power (Heater) 1,500 W
Current 12 A
Max Operating Temp 122°F
Control STC1 controller (included)
Dimensions (H×W×D) 33 × 43 × 12 in
Weight 167 lbs

Documents

FD100 Owner's Manual (PDF)

FD100 Specification Sheet (PDF)

FD100 Spare Parts List (PDF)

FD100 Wiring Diagram (PDF)

FD100 Wiring Schematic (PDF)

Manufacturer's Warranty

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at (978) 295-7538 or email info@uscleaningtools.com

Product Image
Added to cart
Ebac FD100 13223BB-US Lumber Dryer – 220V, Up to 7m³ Loads, STC1 ControlEbac FD100 13223BB-US Lumber Dryer – 220V, Up to 7m³ Load...
View Cart

Frequently Asked Questions

How much lumber does the Ebac FD100 dry per load?
The FD100 dries up to 7 cubic meters per load, moving a workshop past hobby volumes into regular production drying.
How dry can the FD100 bring timber?
It brings wood as low as 6% moisture content, the band furniture and flooring need for stability in heated interiors.
Does the FD100 13223BB-US need extra heaters or venting?
In normal use, no. It runs as a low-humidity dehumidification dryer with no supplementary heaters or venting required, which simplifies the chamber and lowers running cost. It ships with the STC1 controller.
What power supply does the FD100 require?
It runs on 220V, single-phase, 60 Hz at 12A, matching the heavier circuits a busy workshop already runs.
Why dry lumber on site instead of using a contract kiln?
Drying to interior moisture content in your own chamber removes the wait and freight cost of sending stock out, and lets you run mixed loads on your own schedule.
Does the FD100 ship free?
Yes, orders over $3,000 ship free and the FD100 qualifies. It carries a 1-year manufacturer warranty.
