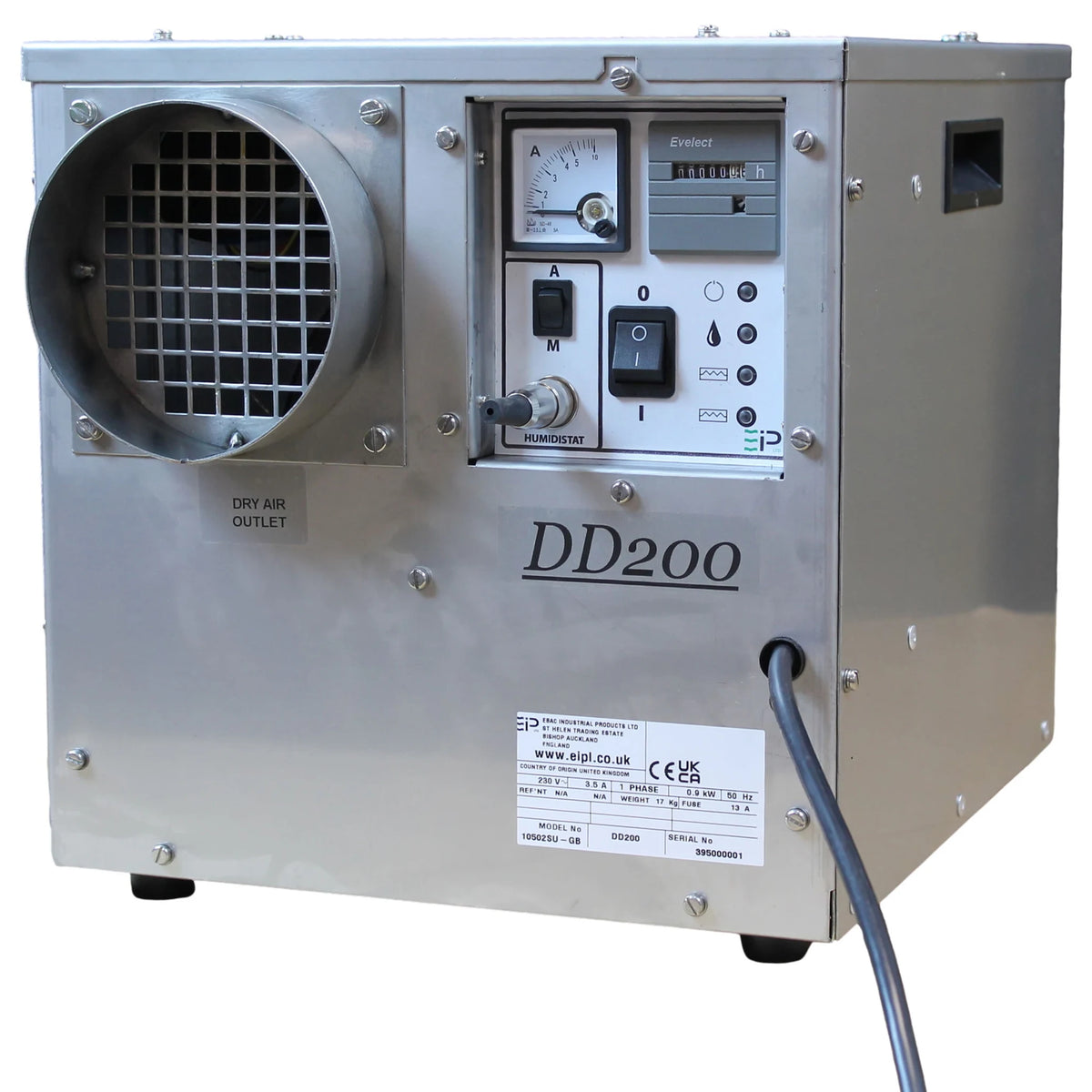

Ebac DD200 Desiccant Dehumidifier - Low Humidity Control – 115 CFM, 110V

Ebac DD200 Portable Moisture Control for Cold and Tight Spaces

Ebac DD200 dehumidifier units use a desiccant rotor to pull moisture from the air, so they keep drying in conditions where a refrigerant machine would slow down. It suits contractors and facility staff who need a compact unit they can carry into a storeroom, crawlspace, or plant room and leave running. The result is drier air across a working range of -4°F to 104°F.

Ebac DD200 Size and Capacity

At 13.3" tall and 37.5 lbs, the DD200 is small enough for one person to move with its carrying handles. Ebac rates it at 36 pints per day at 27°C and 60% relative humidity, with 115 cfm of dry process air.

• Manual / Automatic Mode Selection — run it continuously during a dry-out, or switch to automatic and let humidity readings decide when it works.
• Remote Humidity Sensor Facility — place a sensor where the reading matters instead of relying on conditions at the unit itself. An optional humidistat is also available.
• Hours Run Meter and Ammeter — log run time for billing or service intervals and check current draw on site. The unit pulls 7.5 A on a 110V circuit.
• 5" Process Duct and 2.75" Regen Duct — duct dry air into a closed space and send wet regeneration air outside. Optional inlet duct attachments are offered.
• High Capacity PTC Heaters with Safety Cut-outs — the heaters regenerate the rotor, and high temperature cut-outs shut things down if the unit overheats.
• Rubber Anti-Vibration Feet — the free standing unit sits steady on hard floors, with a rated noise level of 67 dBA.

Ebac DD200 Applications and Environments

Desiccant drying makes sense where air is cold and damp, such as unheated warehouses, archive rooms, pump rooms, and vacant buildings over winter. Restoration crews can use it after a water loss in spaces too cool for a refrigerant dehumidifier to do much. Because it arrives with a fitted mains plug and electronic controls, setup is a matter of placing the unit, connecting ducting if needed, and switching it on. A process and regen air filter protects the rotor from dust on job sites. If your site needs a stainless housing, the Ebac DD200 is offered with optional stainless steel construction.

Specifications

Documents

Spec Sheet

Manual

DD200 Wiring Diagram (PDF)

DD200 Wiring Schematic (PDF)
