Depureco AIR WELD Welding Fume Extractor – 900 CFM, 118 in Arm, Class M Filter
$4,499.00
Free shipping on this item
Ships from US manufacturer with factory warranty
Request a quote / purchase order
Tell us your quantity, delivery ZIP code and required date. For help choosing equipment, include your application.
Email a quote request Call (978) 295-7538Planning around a job date? Confirm current availability and delivery timing with us before ordering.
Authorized Depureco dealerGenuine Depureco equipment with full factory warranty support
Tax-exempt & PO acceptedSend your exemption certificate and we bill without sales tax
30-day returnsUnused equipment in original packaging, within 30 days
Need help choosing? Talk to an expert

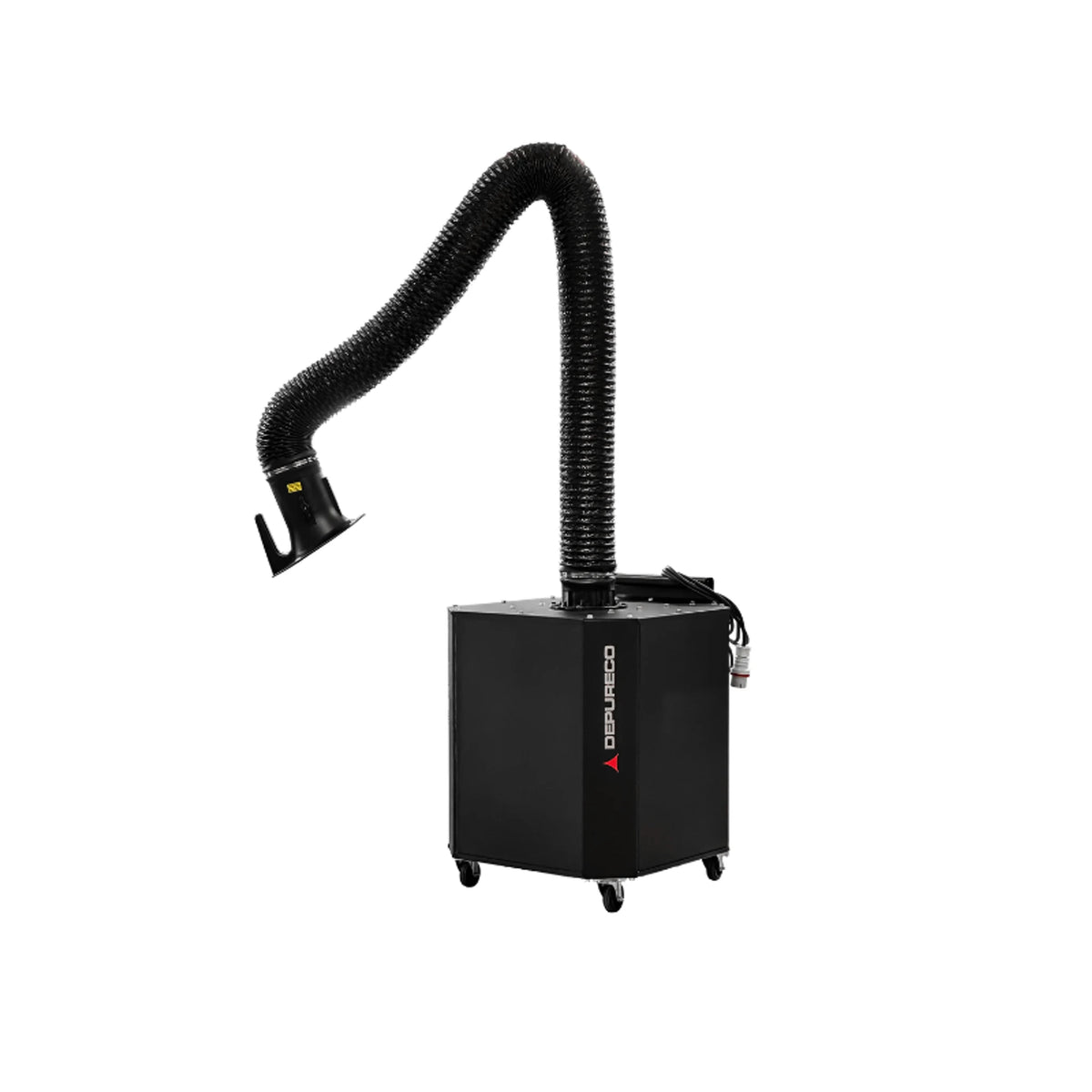

+1 (978) 295-7538AIR WELD Portable Fume Extractor with 118-Inch Articulated Arm
The Depureco AIR WELD is a mobile welding fume extractor. It captures smoke at the source instead of leaning on general room ventilation. The included 118-inch articulated arm puts the hood next to the plume, and the cabinet rolls on pivoting wheels between weld benches and repair bays. Depureco's 2026 U.S. price list identifies it for fumes from TIG welding. It weighs 176 lb with the arm and stands 36 inches tall.
Depureco AIR WELD Airflow and Filtration
A fan pulls up to 900 CFM at the hood through a 6.3-inch inlet. The flow regulator lets the operator turn that down for smaller jobs or a closer hood position.
- Included 118-inch articulated arm: set the hood close to the arc and move it as the weld moves, anywhere within reach of the arm.
- 900 CFM at the hood: the rating is taken at the capture point, where fumes actually enter.
- Flow regulator: matches airflow to the process and to how far the hood sits from the arc.
- 18,576 in² Class M cartridge: a large filter surface keeps air moving as welding particulate collects. The cartridge is classed M under EN 60335-2-69.
- Built-in filter change counter: tracks service timing, so filter changes happen on a schedule rather than when someone remembers.
- Optional activated carbon: an adsorption stage for odor and some gases. It comes as a 2.5 kg filter inside the main filter or as a 10 kg configuration.
AIR WELD Applications and Environments
AIR WELD suits fabrication shops, repair bays and maintenance departments. It also fits light production welding where fixed extraction at every station doesn't make sense, since one unit can roll from bench to bench as the work moves. Hood placement does most of the work. Keep the hood close enough to catch the plume before it spreads, but clear of the torch, the shielding gas and the part. Depureco notes that processes other than TIG should be checked against fume rate, filler material, capture distance and part geometry before choosing the unit. Treat MIG, flux-core and stick work as a sizing question.
Specifications
| Brand | Depureco |
| Model | AIR WELD |
| Motor type | Fan |
| Power supply | Single-phase, 60 Hz |
| Extraction capacity at hood | 900 CFM |
| Flow regulator | Included |
| Inlet diameter | 6.3 in |
| Extraction arm | Articulated, 118 in, included |
| Noise level | 72 dB(A) |
| Height | 36 in |
| Weight (with arm) | 176 lb |
| Primary filter | Cartridge, 18,576 in² |
| Primary filter class | Class M (EN 60335-2-69) |
| Optional filter | Activated carbon |
