Abatement Technologies AG3000MCCC ICRA Containment Cube with Caddy – 8–10 Ft Ceilings

Abatement Technologies AG3000MCCC ICRA Dust Containment Cube with Caddy Cart – 8 to 10 Ft Ceiling Range

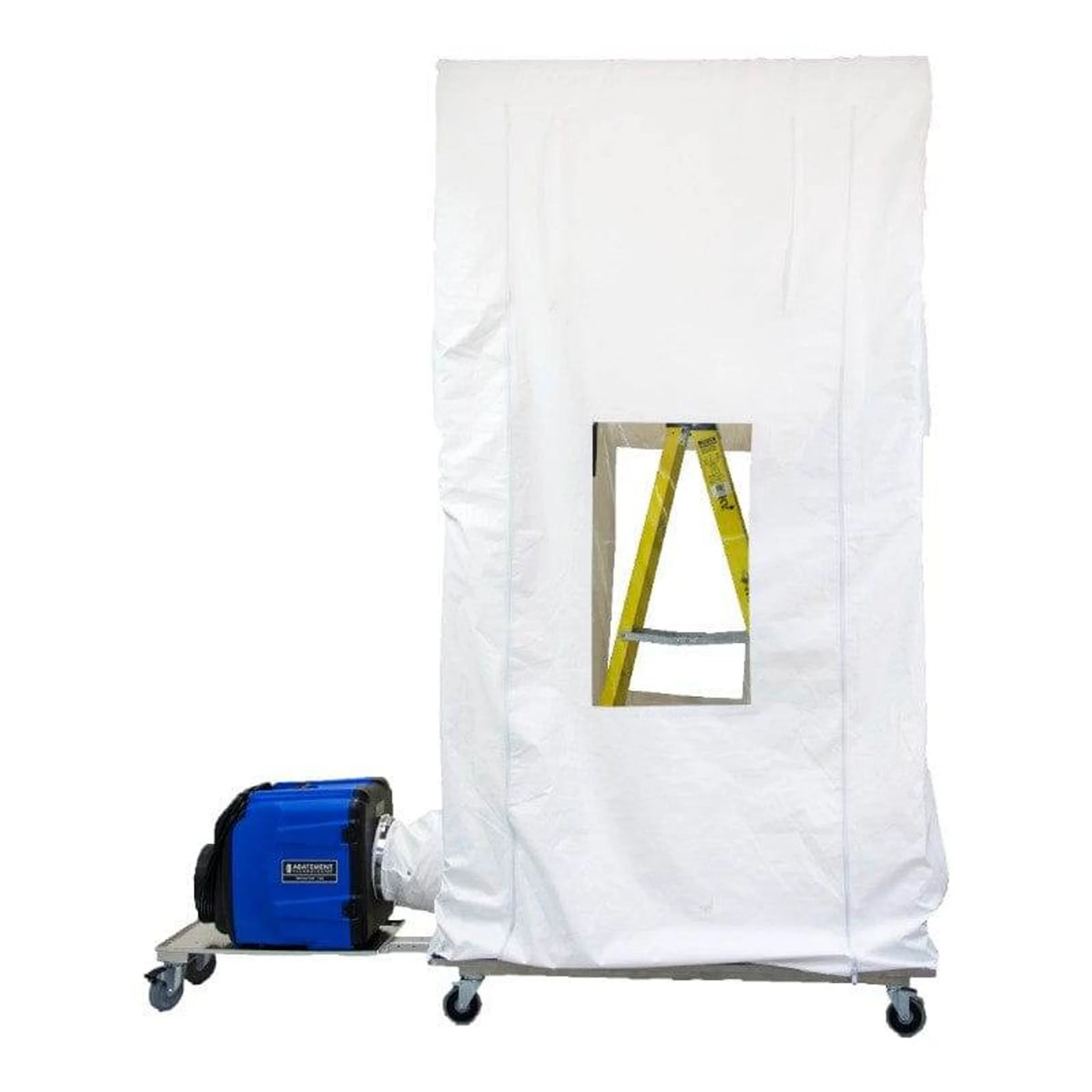

The Abatement Technologies Aire Guardian AG3000MCCC is a mobile ICRA dust containment enclosure built for ceiling and above-tile work in healthcare, office, and institutional construction environments. Its aircraft-aluminum frame adjusts from 8 to 10 feet in height, the military-grade reinforced PVC enclosure supports 300–900 CFM of airflow through integrated ports, and the included 900-lb capacity caddy cart keeps tools, air scrubbers, and cable spools organized and mobile between jobs.

AG3000MCCC Construction and Containment Specs

• Height adjustment: 8 to 10 feet — numbered upright poles enable precise ceiling-height matching without guessing
• Airflow capacity: 300–900 CFM with 12+ air changes per hour at 3,500–4,000 cubic feet of enclosed volume
• Enclosure material: military-grade reinforced PVC with ultrasonically welded seams and non-binding coil zippers for airtight containment
• Access points: 3 zippered doors for worker entry/exit plus top zippers for full above-ceiling access to plenum spaces
• 360° visibility windows on all four sides — clear panels improve situational awareness and allow supervisors to monitor work without entering the enclosure
• HEPA vacuum ports: fits up to 3 hoses and integrates passthrough ventilation ports for paired air scrubbers
• Caddy cart: 900-lb rated capacity with six adjustable positions and a slide-out design for loading air scrubbers and tools
• Weight: 93 lbs — four locking casters for mobility between room setups

ICRA Construction Environments and Compliance Applications

The AG3000MCCC is designed specifically for Infection Control Risk Assessment (ICRA) Class III and Class IV construction activities in active healthcare facilities. Hospitals undergoing HVAC reroutes, lighting upgrades, or fire suppression retrofits above occupied clinical areas use the AG3000MCCC to isolate ceiling penetrations from patient zones below. The enclosure prevents disturbed particulate, fibrous insulation debris, and Aspergillus spores from reaching adjacent corridors or rooms during above-tile work. University medical centers and ambulatory surgery centers rely on the cube's compliance with CDC infection control guidelines and CSA Z317.13-03 construction standards to satisfy infection control committees before work begins. Office towers and corporate campuses undergoing tenant improvements use the cube to contain drywall dust and ceiling tile debris in occupied buildings where shutting down adjacent spaces is not feasible. The 900-lb caddy cart eliminates the repeated trips carrying equipment between floors that slow ICRA-compliant setup and teardown.

ICRA Cube Dimensions, Negative Pressure Setup, and Containment Standards

The AG3000MCCC cube packed dimensions are 30" × 60" × 10", making it transportable in standard service elevators. When erected, the aluminum frame supports the PVC enclosure at heights from a minimum of 7 feet lowered to a maximum of 10 feet extended (3 meters), accommodating the full range of standard commercial drop-ceiling heights. Negative pressure inside the cube is achieved by connecting a compatible HEPA air scrubber or negative air machine (sold separately) to the passthrough ventilation port — the machine exhausts filtered air outside the enclosure while the sealed PVC walls prevent unfiltered air from escaping the work zone, establishing a sustained negative pressure differential that pulls any disturbed particulate toward the filtration unit rather than outward. The AG3000MCCC meets JCAHO EC.5.50.2 for Smoke-Tight Enclosures, CDC infection control construction guidelines, CSA Z317.13-03, AIA/ASHE guidelines, NFPA 701 Life Safety Code, and CA Fire Marshall FR specifications (Federal Std. 191A, Test Method 5903, MVSS 302). It is not a powered device and does not include a HEPA air scrubber or HEPA vacuum.
